Phew, that was close. The Dwell control sets the length and thickness of the decay, which is to say that it controls how long the disembodied spirits of notes no longer with us float through the ether. At the maximum setting it will descend into an infinite loop of self-oscillation. The Depth sets the intensity of the reverb, which you probably know as the wet/dry mix, but we like to think of it more as how scary the overall effect is.

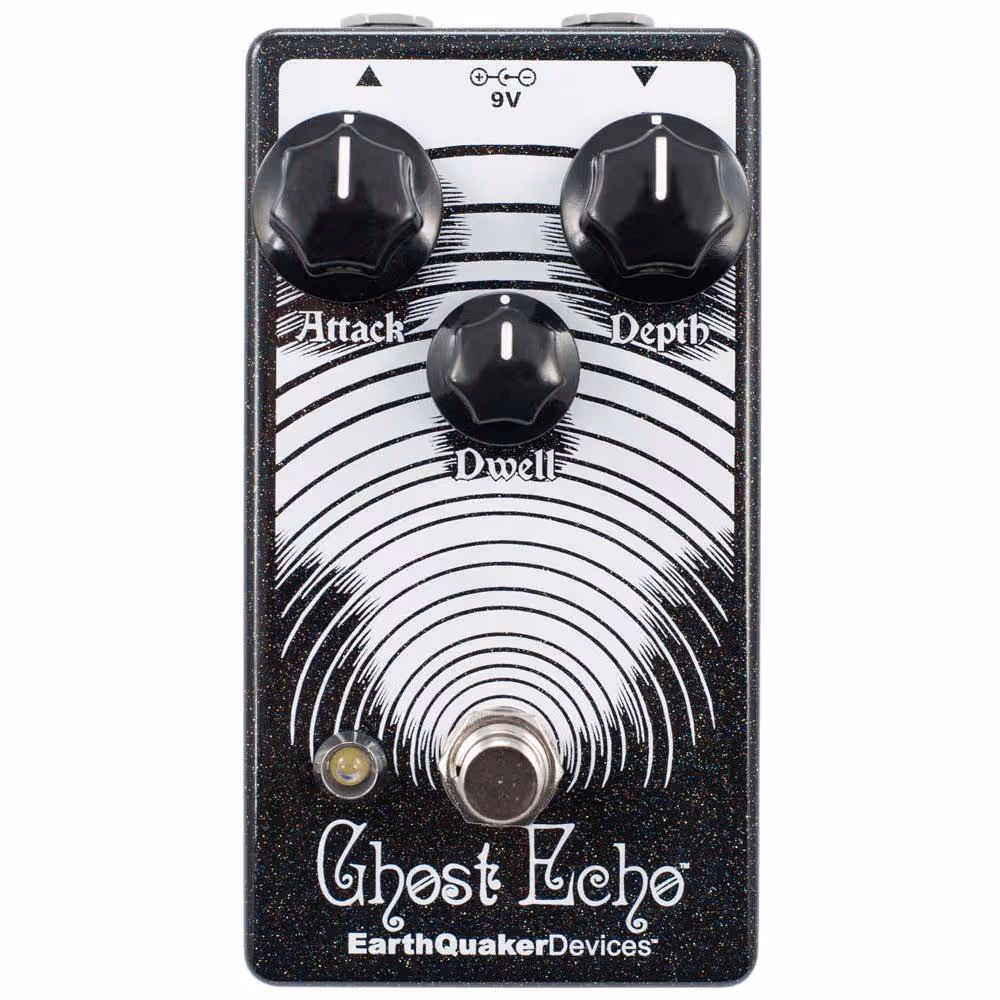

Controls

• Attack: Adjusts the length of the pre-delay, from 30ms at minimum to about 150ms at maximum. When the Dwell is set to self-oscillate, this will change the pitch of the oscillations.
• Dwell: Adjusts the length of the decay. This will start to self oscillate around 3 O’clock, the pitch of the oscillations can be changed by turning the Attack control.
• Depth: Mixes in the wet signal with the dry, unity is around noon and everything after is boosted.

SPECIFICATIONS

• Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
• Current Draw: 86 mA
• Input Impedance: 10 MΩ
• Output Impedance: 1 kΩ
• Switching: This device is true bypass and uses electronic relay-based switching. Audio will not pass without power.
• Power: 9V

‍
