• Delay signal volumes: The delay time is set to a quarter note, and the pedal generates corresponding 16th note and triplet delay signals. Each delay signal can be independently boosted up to 3dB.
• Tone: This effect transitions between three distinct delay types: digital, analogue and tape echo, offering a rich and evolving sonic palette.
• Filter: This effect emulates the classic low-pass ladder filter, a hallmark of Moog synthesizers. High resonance with adjustable cutoff frequency delivers the distinctive, edgy character of the Moog ladder filter. Zero resonance provides a more standard low-pass filter response.
• Tail Decay: Want your repeats to linger after you hit bypass? Tail Decay lets you control how long the echoes hang around — from instant cut-off to lush, sustained trails.
• Auto-panning: Take full advantage of stereo outs with 8 auto-panning modes, including left-to-right sweeps and ping-pong effects. Adjust width and speed for dynamic movement across the stereo field.
• MIDI: You can control all the parameters in the Layer Delayer using MIDI controllers. It also supports MIDI clock message that synchronizes the delay time.

Specs :

• Independent variable volume control of 16th and triplet delay notes.
• Simulated digital delay/analogue delay/tape echo tones that gradually transition in between.
• Simulated low-pass ladder filter.
• 20 factory presets in 50 presets.
• The Layer Delayer app, the latest firmware and its updater are all available on Ibanez's website.

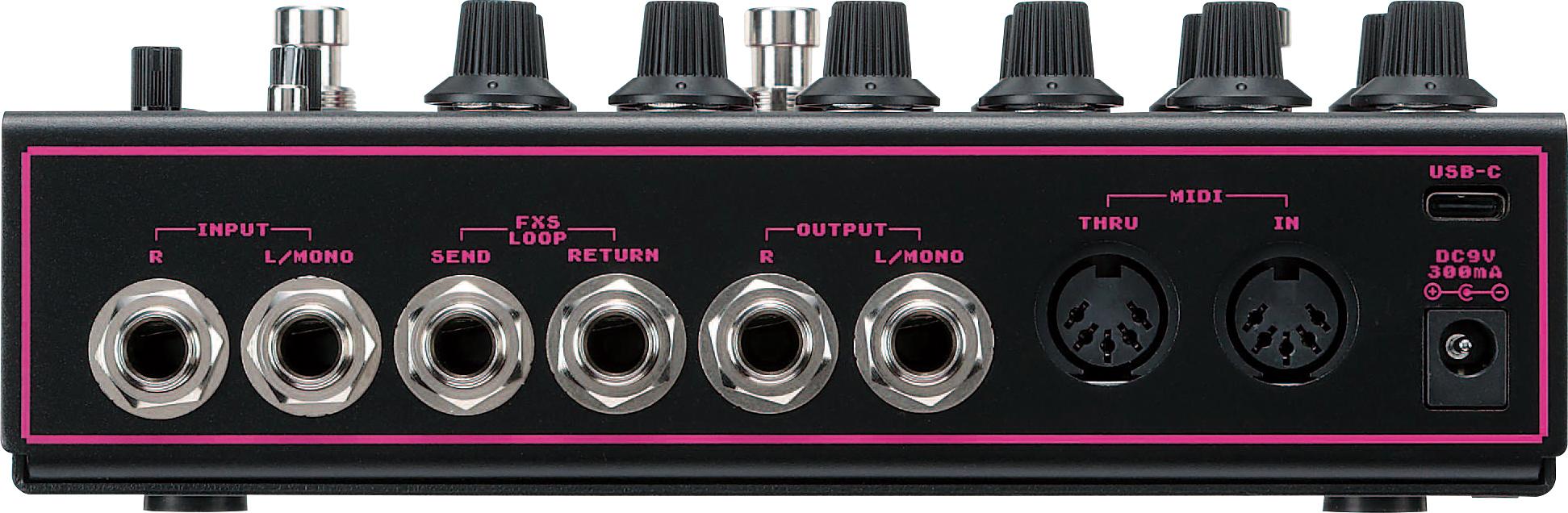

• Stereo in/out, FXs loop on the delay signal path and MIDI in/through.

Dimensions & Power Requirements

• Size (W x D x H): 175 x 125 x 62 mm (6.9 x 5.0 x 2.5 inches)
• Power: 9V DC (Centre Negative)
• Current Draw: 300mA

‍

‍
