Designed with the contemporary guitarist in mind, the Memory Lane STM32 features four distinct delay modes, each offering unique sonic possibilities. From the faithful reproduction of the Memory Lane Jr’s fixed-rate delay to warm, saturated vintage repeats, rhythmic dual-head patterns, and expansive three-head ambience, this pedal is built to inspire creativity. Additional features such as tap tempo with subdivisions, top-mounted jacks for stage-friendly connectivity, and buffered bypass operation ensure it fits effortlessly into any rig while maintaining pristine signal integrity.

Beyond its impressive sound palette, the Memory Lane STM32 is engineered for reliability and ease of use. The pedal’s advanced operation modes provide flexible control options, including classic Memory Lane behaviour, delay trails on bypass, and momentary or latching switching for modulation and tempo doubling. Hand-made in Montreal, Canada, and powered by a standard 9V DC PSU, the Memory Lane STM32 is a robust and versatile delay pedal that elevates your tone and performance.

Digital Bucket Brigade Architecture

Diamond’s exclusive digital Bucket Brigade design combines three distinct delay lines with analogue companding and filtering, delivering the warm, musical character of vintage delays with the clarity and extended range afforded by modern digital processing.

Four Versatile Delay Modes

From classic fixed-rate delays to rich vintage saturation, rhythmic dual-head patterns, and expansive ambient repeats, the Memory Lane STM32 offers a diverse palette of sounds to suit any musical style or creative need.

Tap Tempo with Subdivisions

Precise control over delay timing is at your feet with tap tempo functionality and selectable subdivisions, allowing you to lock in your delay perfectly with your playing or band tempo. The Auto Div and Doubler features further enhance rhythmic flexibility.

Advanced Operation and Reliability

With modes such as Trails, Momentary/Latching switching, and classic Memory Lane behaviour, plus top-mounted jacks and soft touch relay switching, this pedal is designed for dependable performance in any live or studio environment.

FEATURES

• Digital Bucket Brigade Architecture - Combines three distinct delay lines with analogue companding and filtering to recreate the warmth and character of vintage delays with modern clarity and extended delay times.
• Up to 2400 ms Delay Time - Offers a wide range of delay durations, from tight slapback echoes to long, modulated repeats, perfect for creating rich, atmospheric soundscapes.
• Four Distinct Delay Modes - Includes MLjr Mode for classic fixed-rate delay, Vintage Mode for saturated repeats, Galloping 2-Head for rhythmic patterns, and Ambient 3-Head for cascading, layered effects.
• Tap Tempo with Subdivisions and Advanced Controls - Enables precise timing with easy tempo adjustments, plus features like Auto Div, Doubler, Trails, and Momentary/Latching switching for versatile performance options.

SPECIFICATIONS

Delay

• Delay Type: Digital Bucket Brigade-style with analogue companding and filtering
• Processor: STM32 ARM Processor
• Maximum Delay Time: 2400 ms
• Delay Modes: MLjr Mode, Vintage Mode, Galloping 2-Head, Ambient 3-Head

Controls & Features

• Tap Tempo with Subdivisions via dedicated footswitch
• Auto Div and Doubler tempo features
• Advanced operation modes: Geezer Mode, Trails Mode, Momentary/Latching Mode
• Buffered bypass with soft touch relay switching

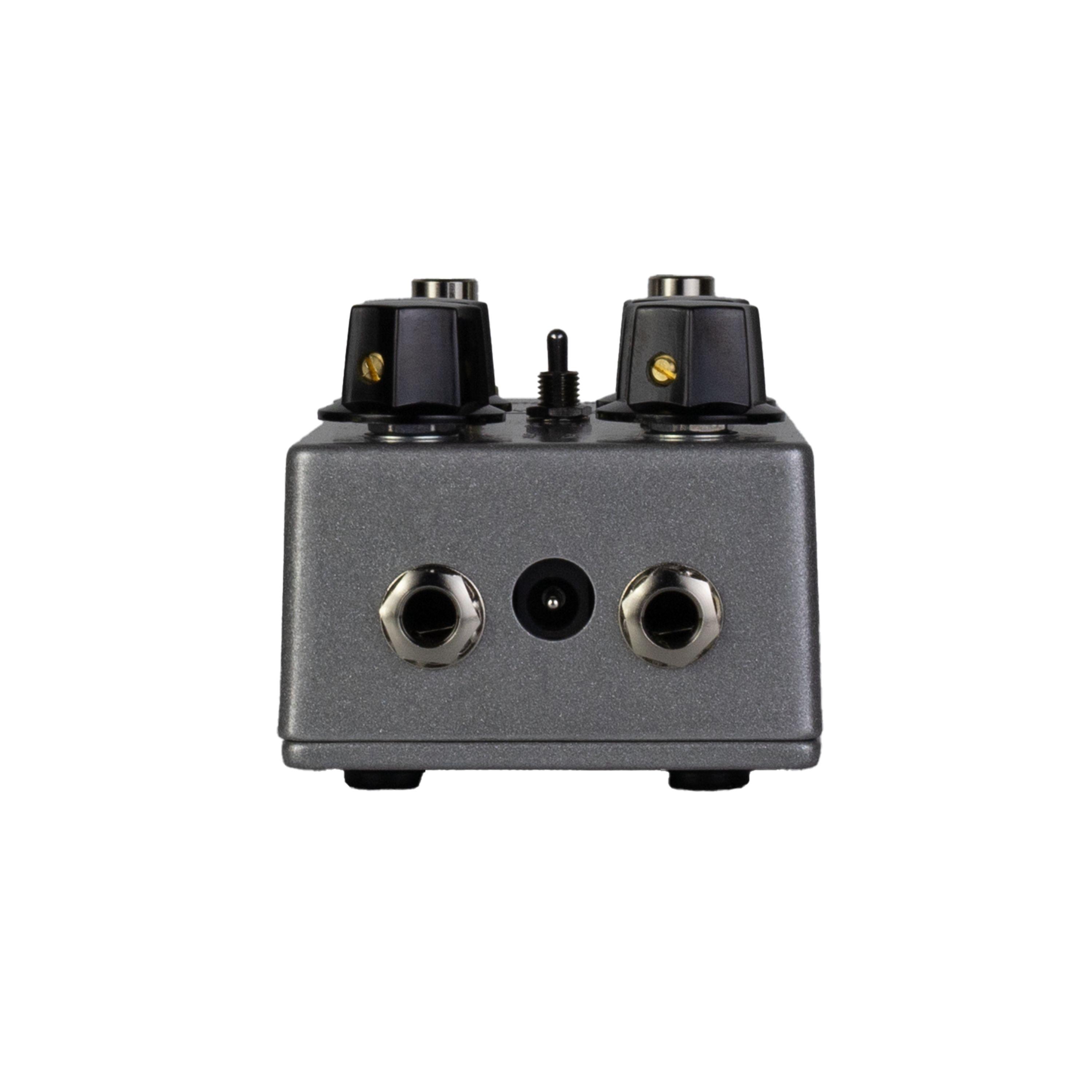

• Top-mounted input/output jacks

Power

• Power Supply: 9V DC PSU (centre negative, 2.1 mm)
• Current Draw: Approximately 50 mA

Construction

• Hand-made in Montreal, Canada

‍
