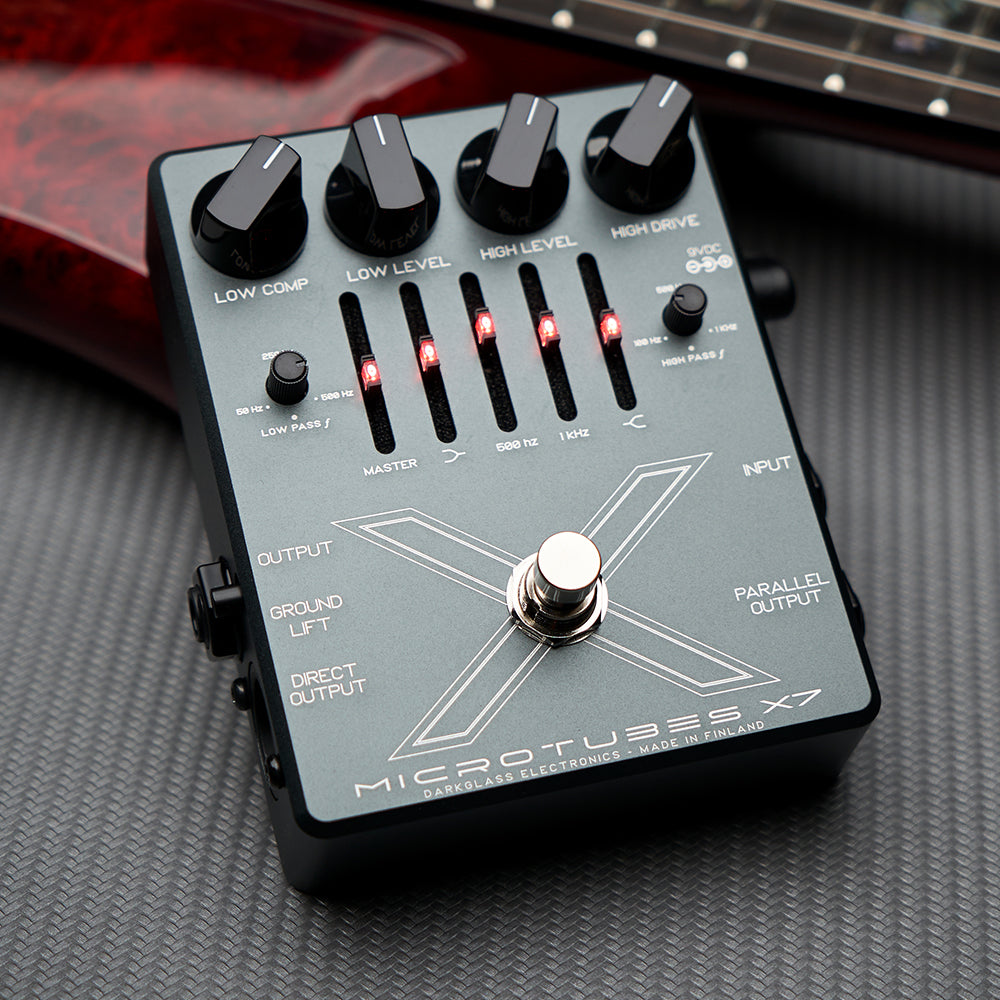

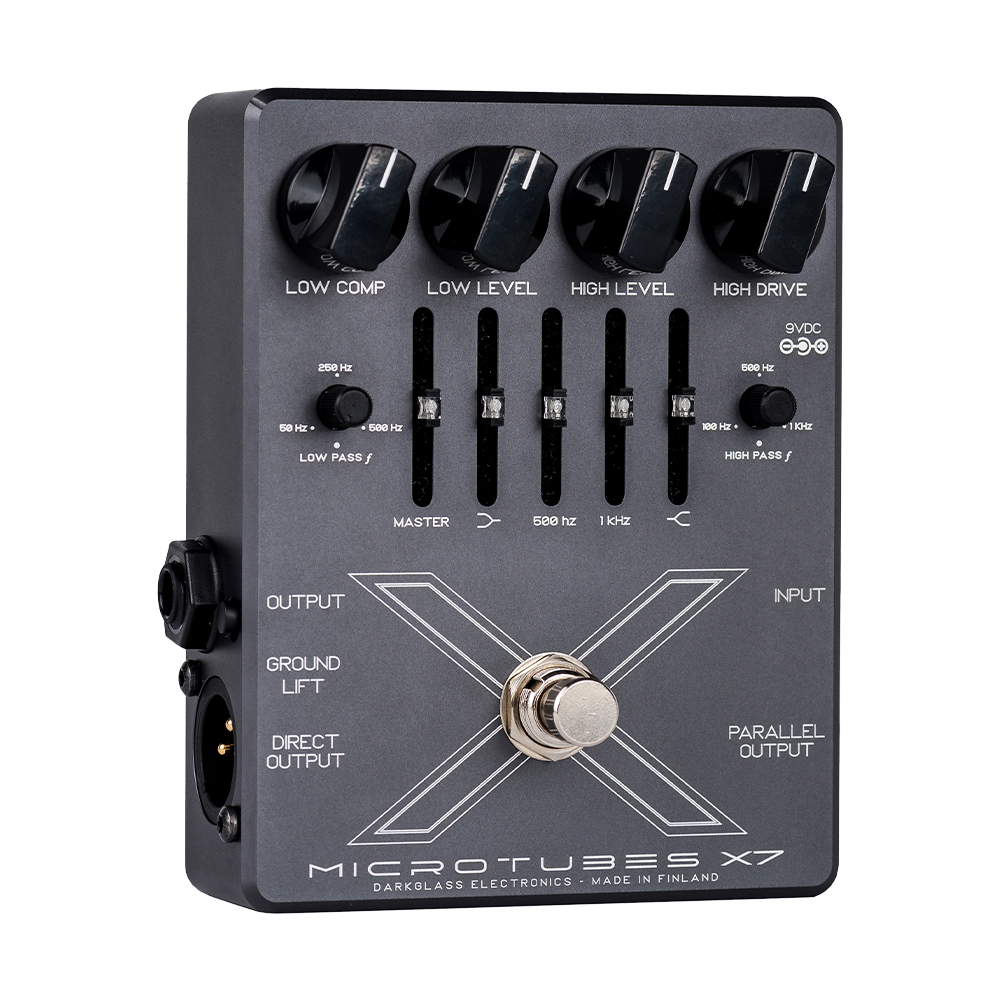

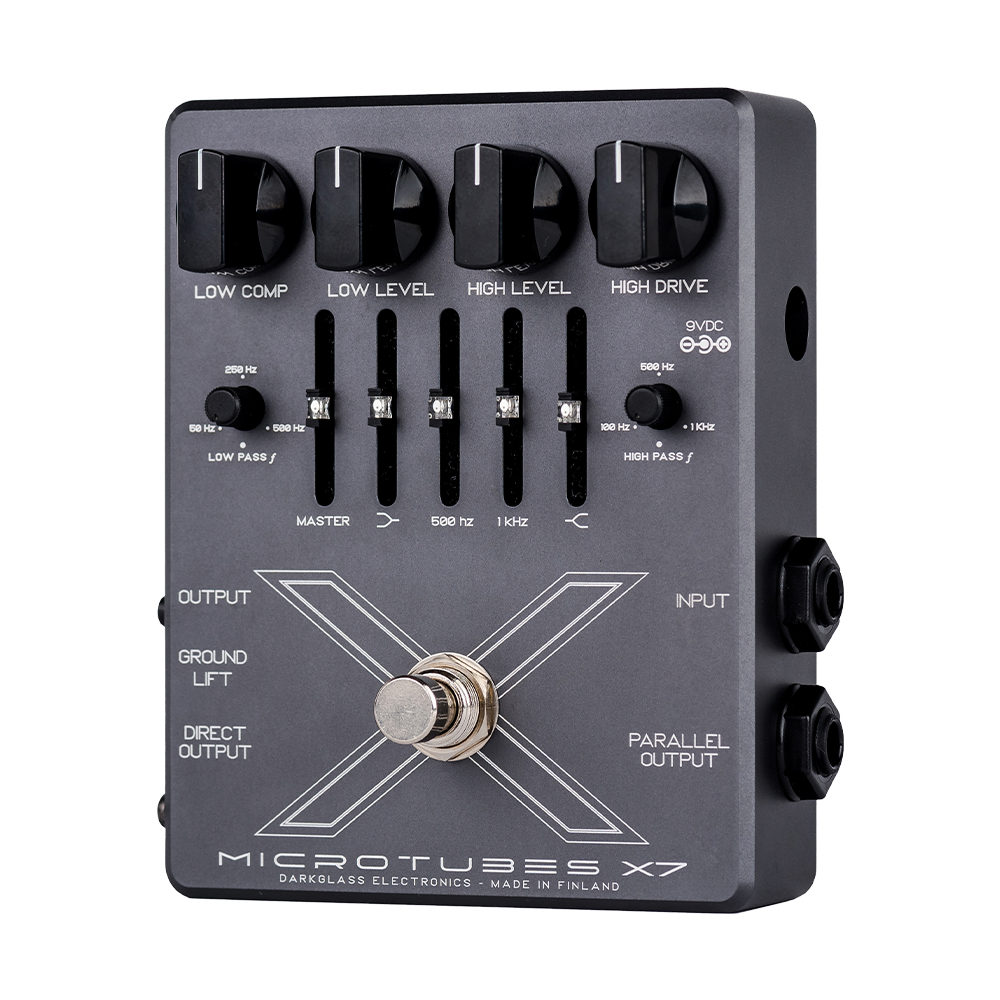

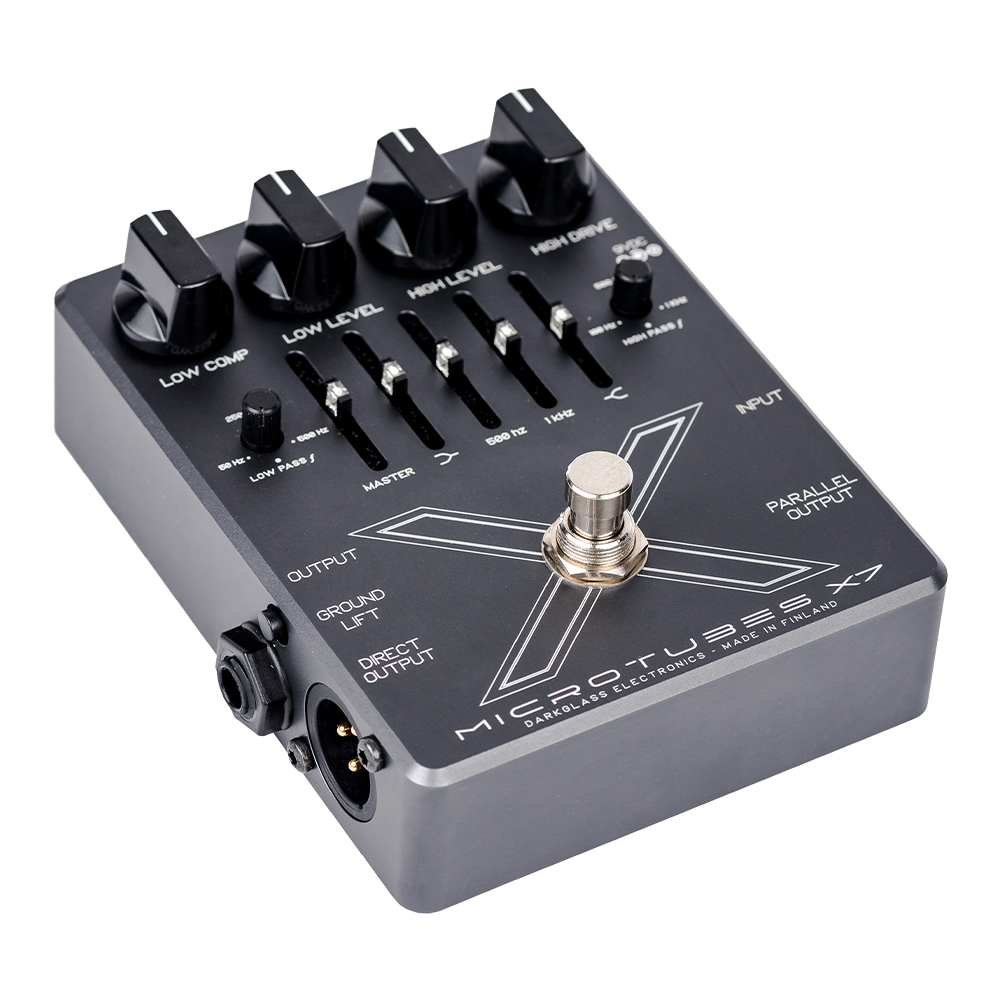

FEATURES

• High Pass Frequency: Controls the cutoff frequency to be distorted, ranging from 100Hz to 1kHz
• High Drive: Sets the amount of distortion for the high pass side
• High Level: Sets the output volume of the distorted high-pass signal
• Low Pass Frequency: Controls the cutoff frequency to be mixed back to the high-pass side
• Low Comp: Sets the amount of compression for the low-pass signal
• Low Level: Sets the output volume of the low-pass signal
• Master: Sets the overall volume of the unit

HIGH PASS FREQUENCY

• Controls the cutoff frequency to be distorted, ranging from 100Hz (for thicker, fuzzier saturation) or 1kHz for ultra-sharp definition.

High Drive

• Sets the amount of distortion for the high pass side.

High Level

• Sets the output volume of the distorted high-pass signal.

Low Pass Frequency

• Controls the cutoff frequency to be mixed back to the high-pass side. Ranging from 50Hz (for only sub-bass) and 500Hz to preserve some clean mids.

Low Comp

• Sets the amount of compression for the low-pass signal.

Low Level

• Sets the overall volume of the unit.

Master

• Sets the overall volume of the unit.

Low Shelf

• +-12dB @ 80 Hz

500 HZ

• +-12dB

1 KHZ

• +-12dB

High Shelf

• +-12dB @ 5 kHz

Dimensions

• Width: 94 mm / 3¾″
  Length: 120 mm/ 4¾″
  Height: 46 mm / 1¾″
  Weight: 320 g / 0.7 lb

‍
