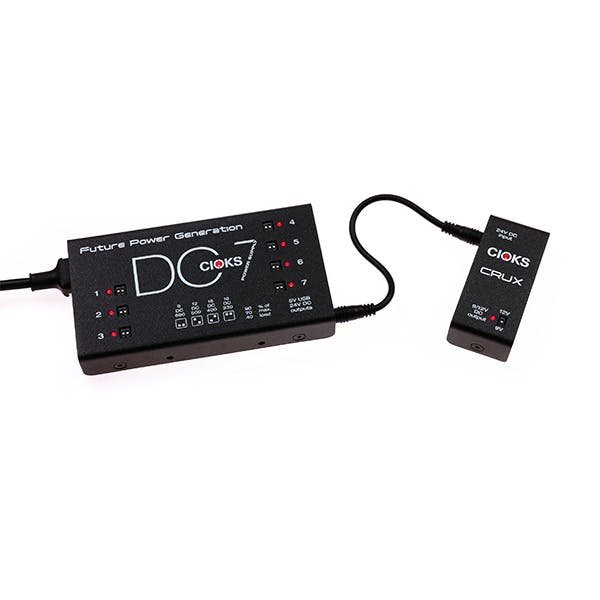

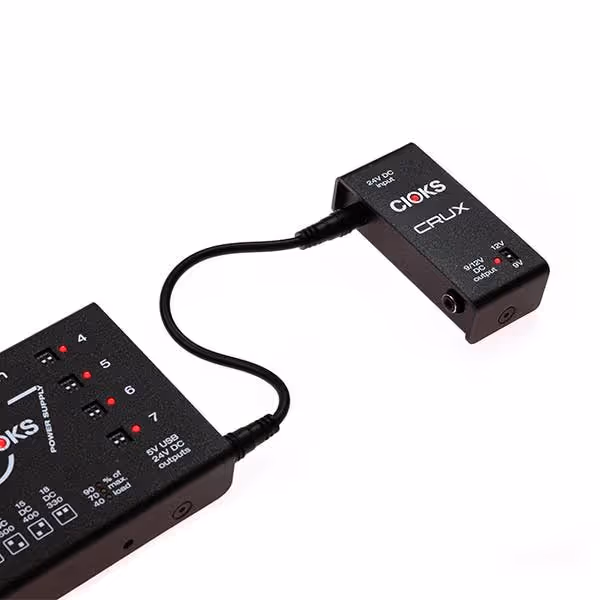

Simply connect the CRUX to the 24V outlet on DC7, set the correct voltage on CRUX, connect the appropriate CIOKS Flex cable from CRUX to your multi-effect pedal and you are good to go.

Using CRUX frees up the outlets on DC7 that would otherwise be needed to run these devices (for instance four for a Neural DSP Quad Cortex and two outlets for a Line HX Stomp), allowing you to run more pedals along with your multi-effects device. CRUX therefore provides a simpler, more reliable setup and gives you more options for connecting additional pedals.

FEATURES

• Future Power Generation high current addon for DC7
• Profile of only 2.5 cm
• Powers a Neural DSP Quad Cortex with DC7 saving you 4 outlets on the DC7
• Overload and short circuit protected outlet
• Overvoltage protected outlet protecting your equipment
• Compatible with CIOKS MiniGRIP for drill-free mounting underneath Pedaltrain boards

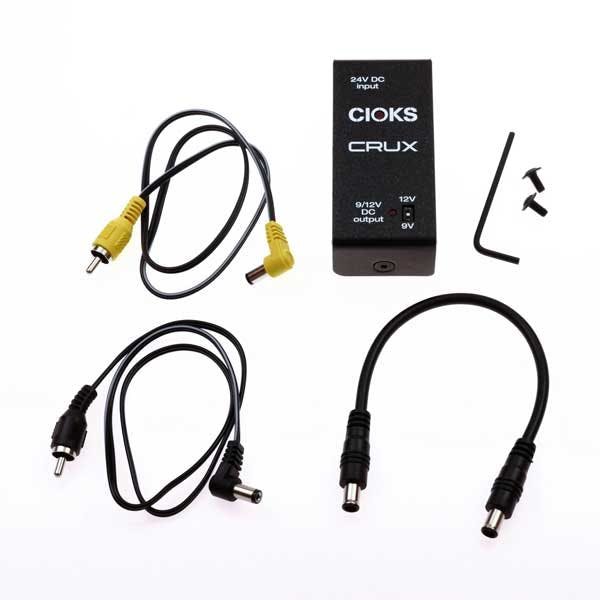

• 24V DC Link cable included • Mounting hardware for Pedaltrain and Templeaudio boards and hex-key included
• Compatible with CIOKS miniGRIP for drill-free mounting on Pedaltrain boards (sold separately)
• 2 Flex cables included: 1 x Flex 1050 – black with 5.5/2.1 mm centre positive DC plug, 50 cm, 1 x Flex 3050 – yellow with 5.5/2.5 mm centre positive DC plug, 50 cm
• Designed in Denmark, assembled in Europe

‍
