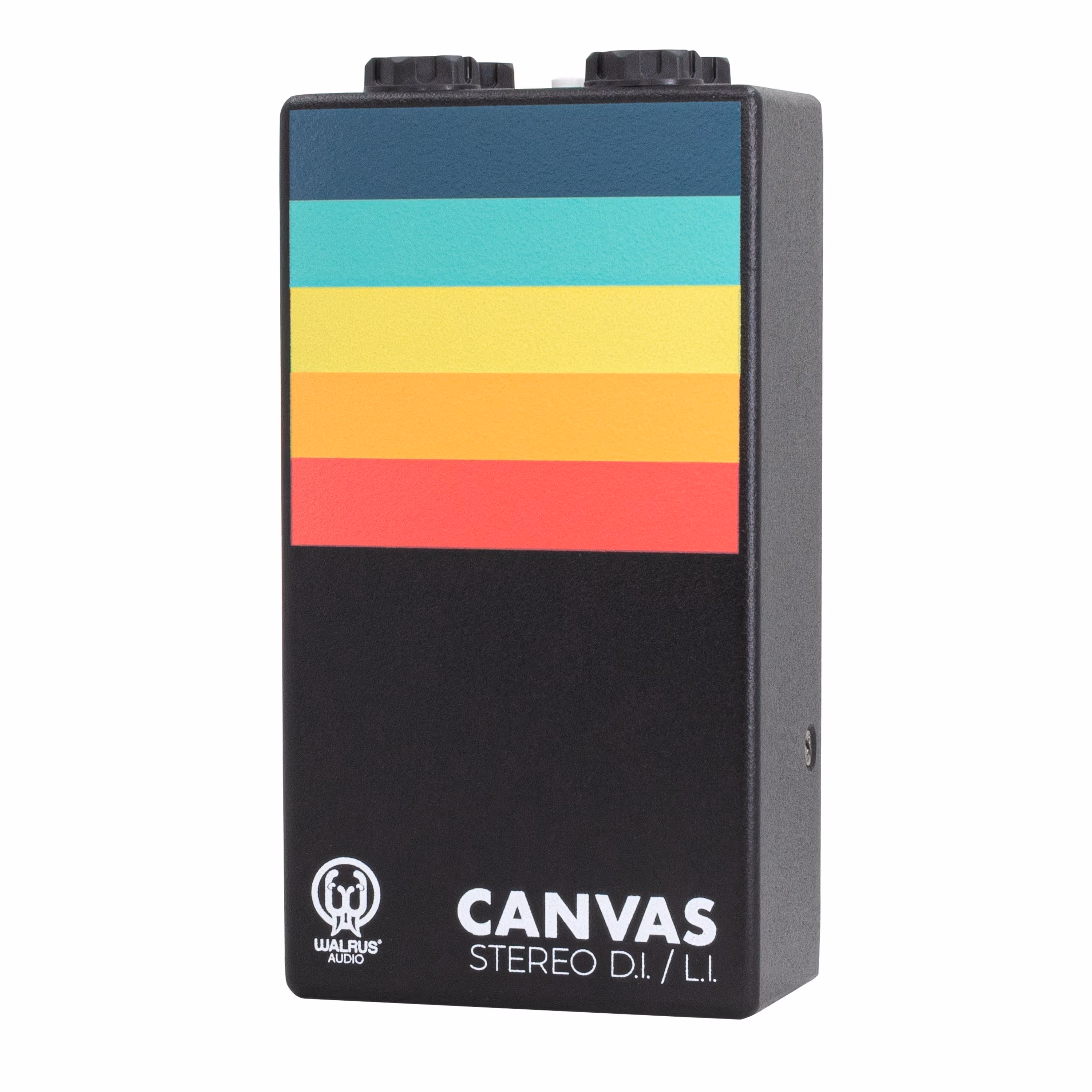

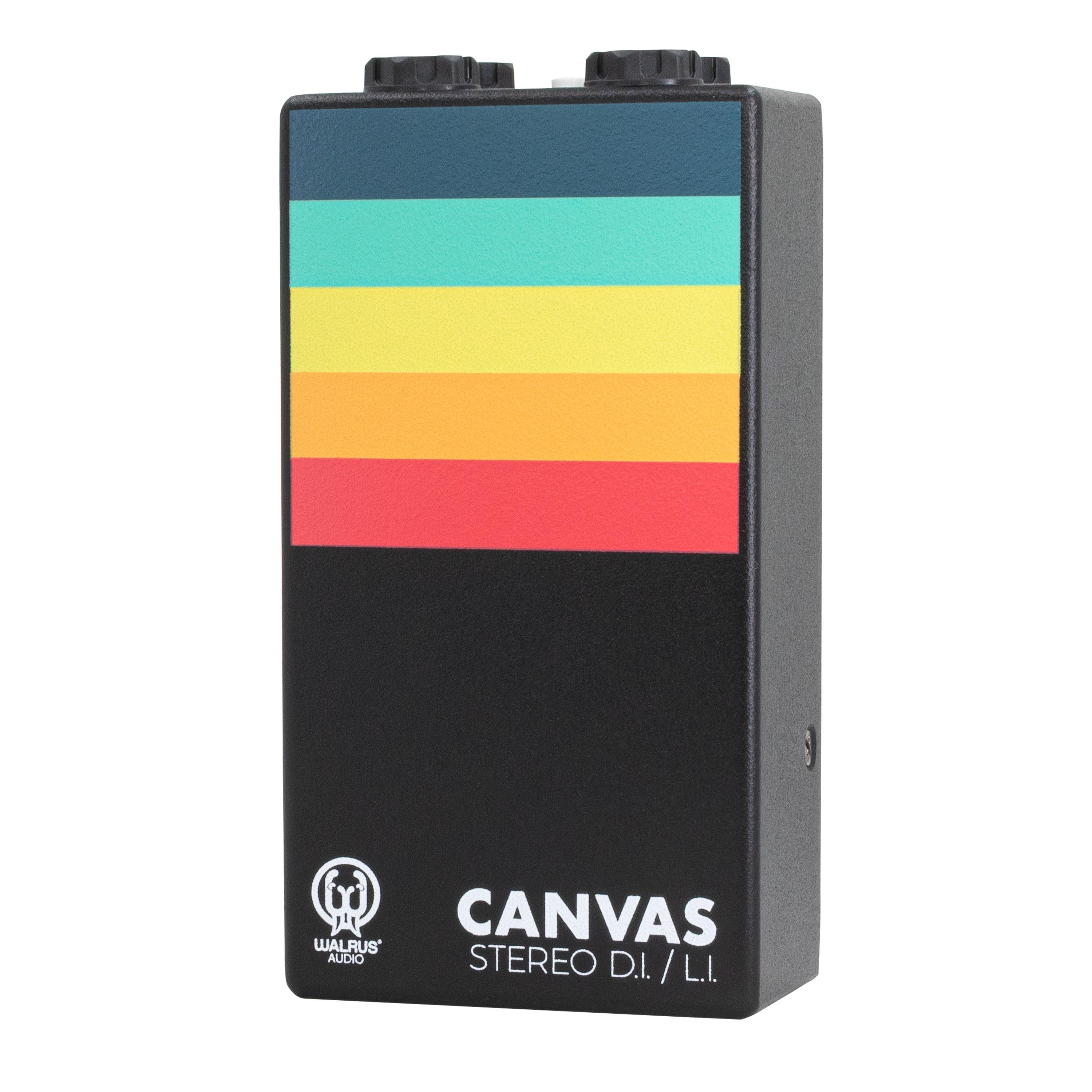

The Canvas Stereo is a dual-purpose line isolator and DI box and works by converting your unbalanced signal into a balanced signal for seamless integration with a recording interface or front of house mixing desk. Housed in a familiar stompbox sized chassis, the Canvas Stereo fits perfectly on your pedalboard and is fully passive, which means it does not require power! The Canvas Stereo features two modes of operation: DI mode and LI mode. DI mode is optimised for high impedance sound sources such as electric guitars or basses. LI mode is designed for low impedance line-level sound sources including amp sims and keyboards. A built-in 15dB input pad (DI mode only) minimises distortion on hotter signals, for complete rig versatility.

FEATURES

• Passive Line Isolator and Direct Injection device

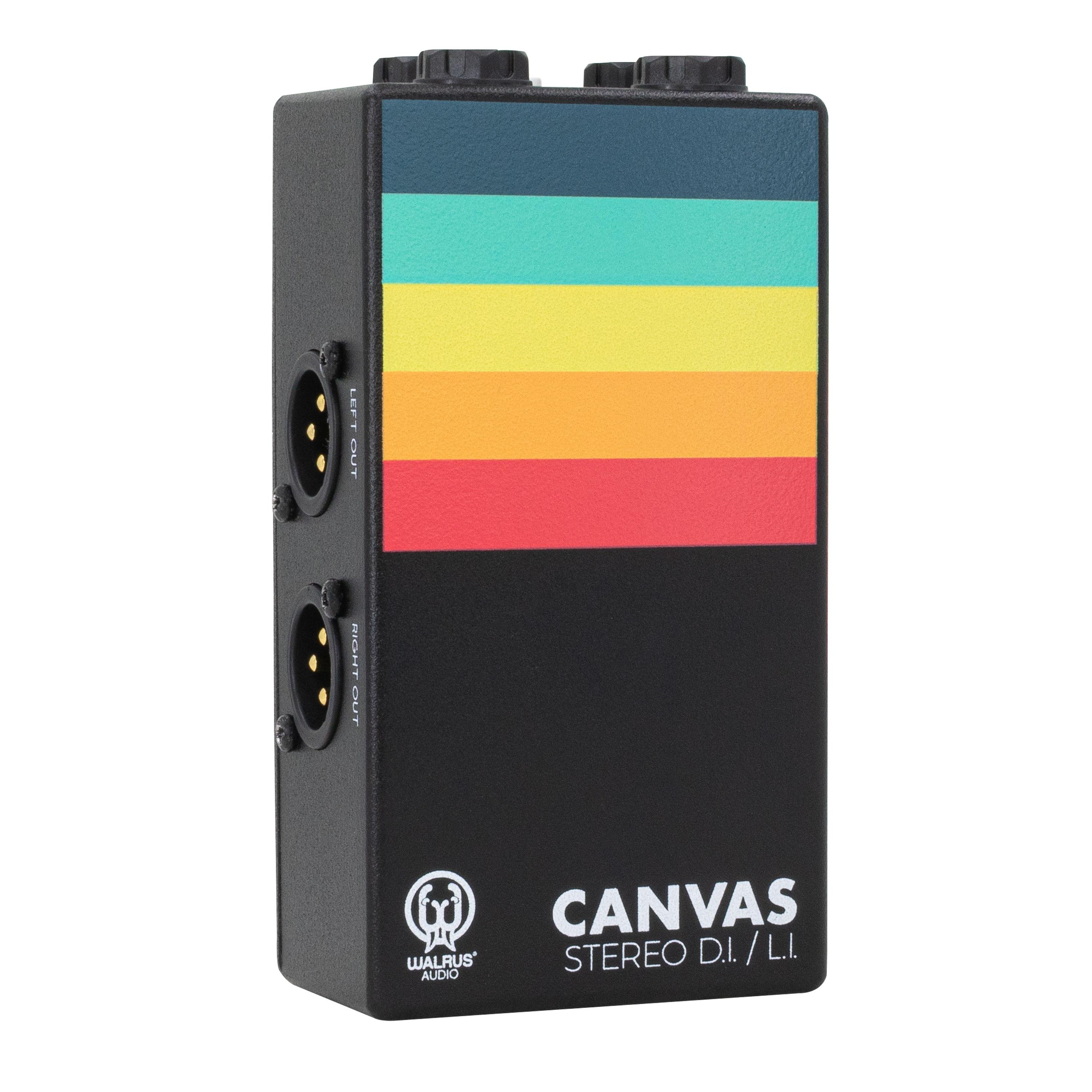

• Converts ¼” unbalanced input to XLR balanced output
• For interfacing with your recording interface or FOH mixer
• Works perfectly with amp-in-a-box devices e.g. Walrus Audio ACS1
• Stompbox format for easy integration on pedalboards
• Choose between DI-or Line-Isolator-Mode
• Flat frequency response from 20Hz-20kHz
• Custom wound transformers for low THD and full frequency response
• Transformer isolated output

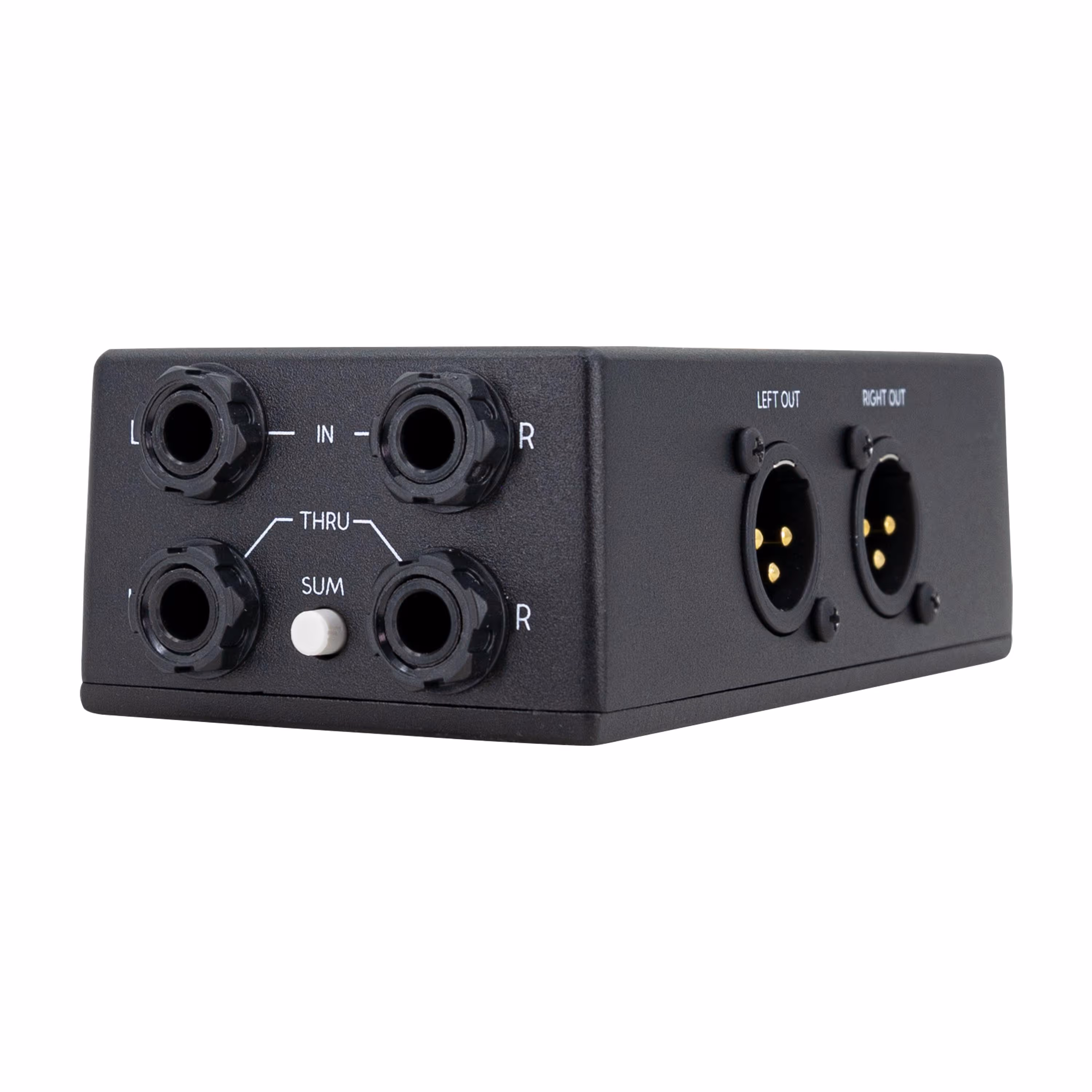

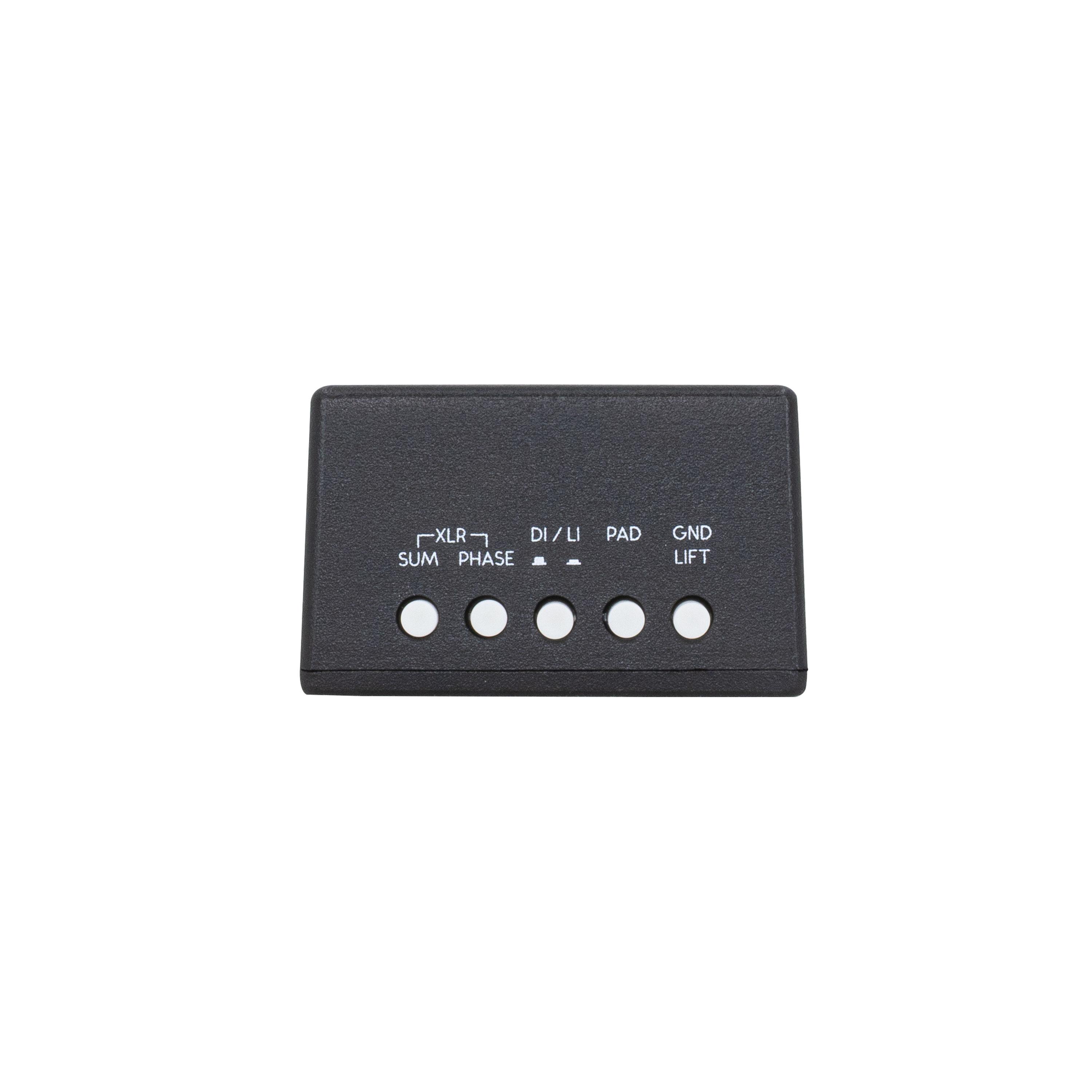

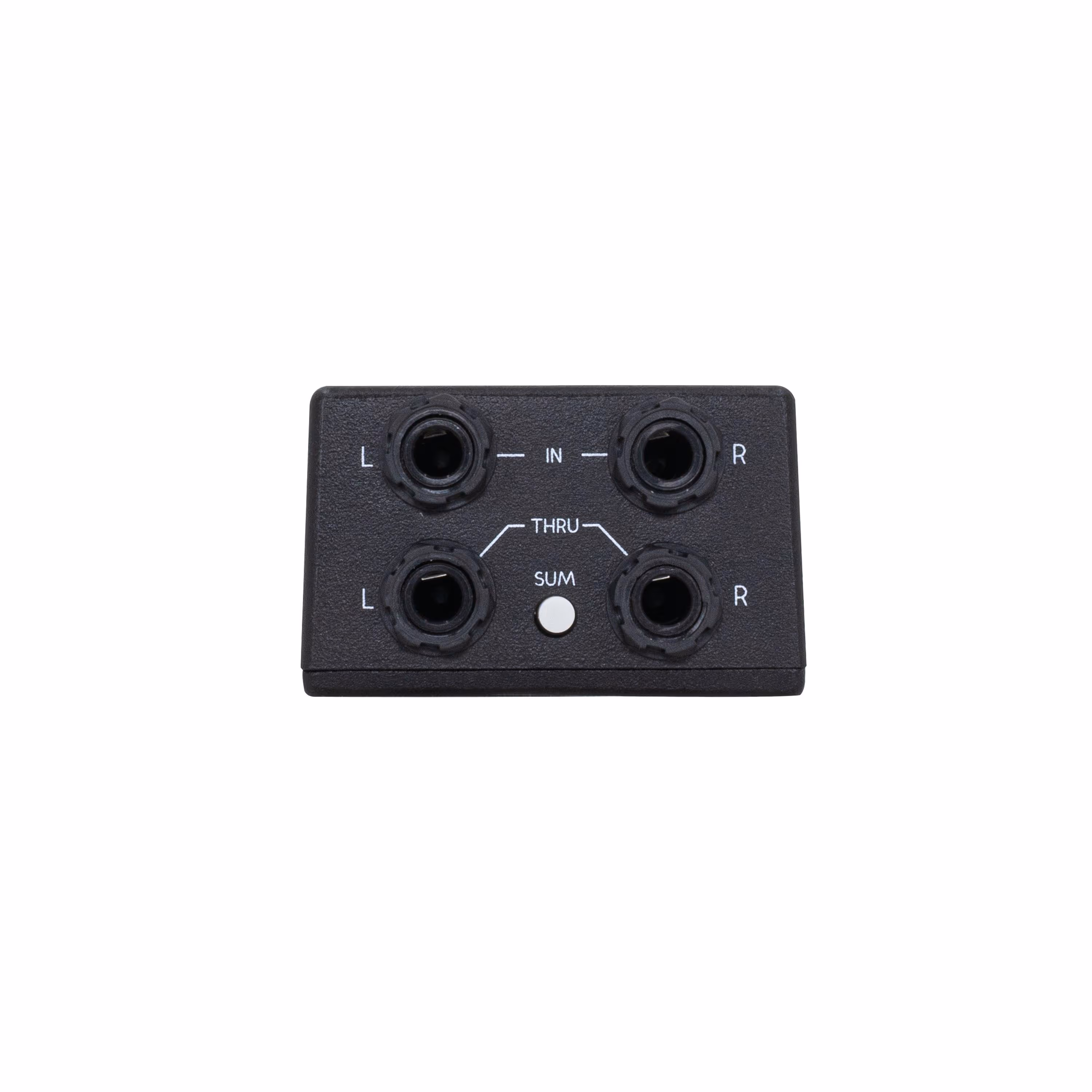

• Sum switch - When disengaged (out), the left input connects to the left thru. The right input connects to the right thru allowing the use of stereo amplifiers. When engaged (in), Sum connects the left and right thru jacks together to combine the signals for running into a single amplifier (use either thru jack)
• Pad: Enabled a -15dB input pad (only in D.I. mode) to minimize distortion
• GND Lift: Isolates GND pin on XLR to reduce hum
• Passive design – no power required
• Made in the USA

‍
