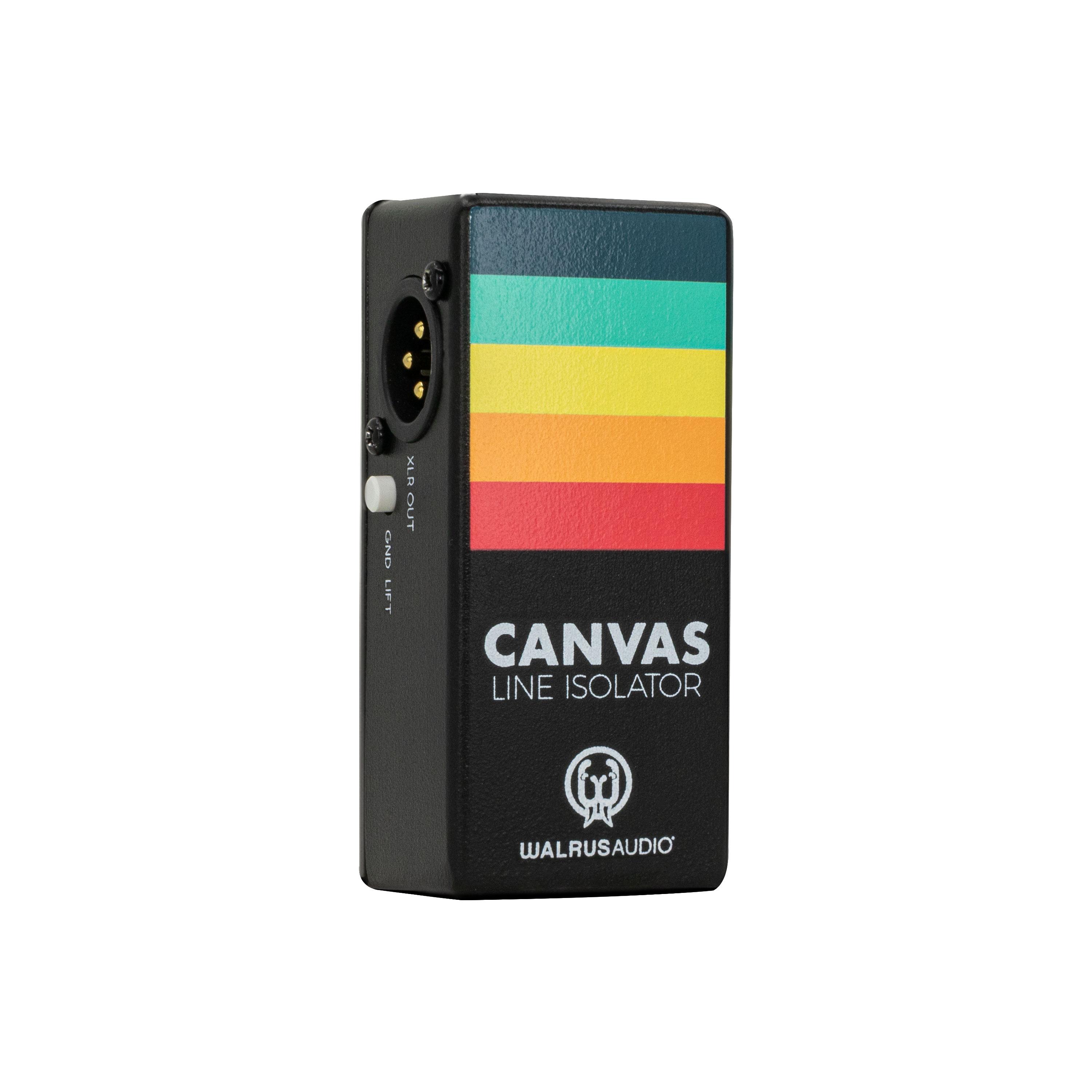

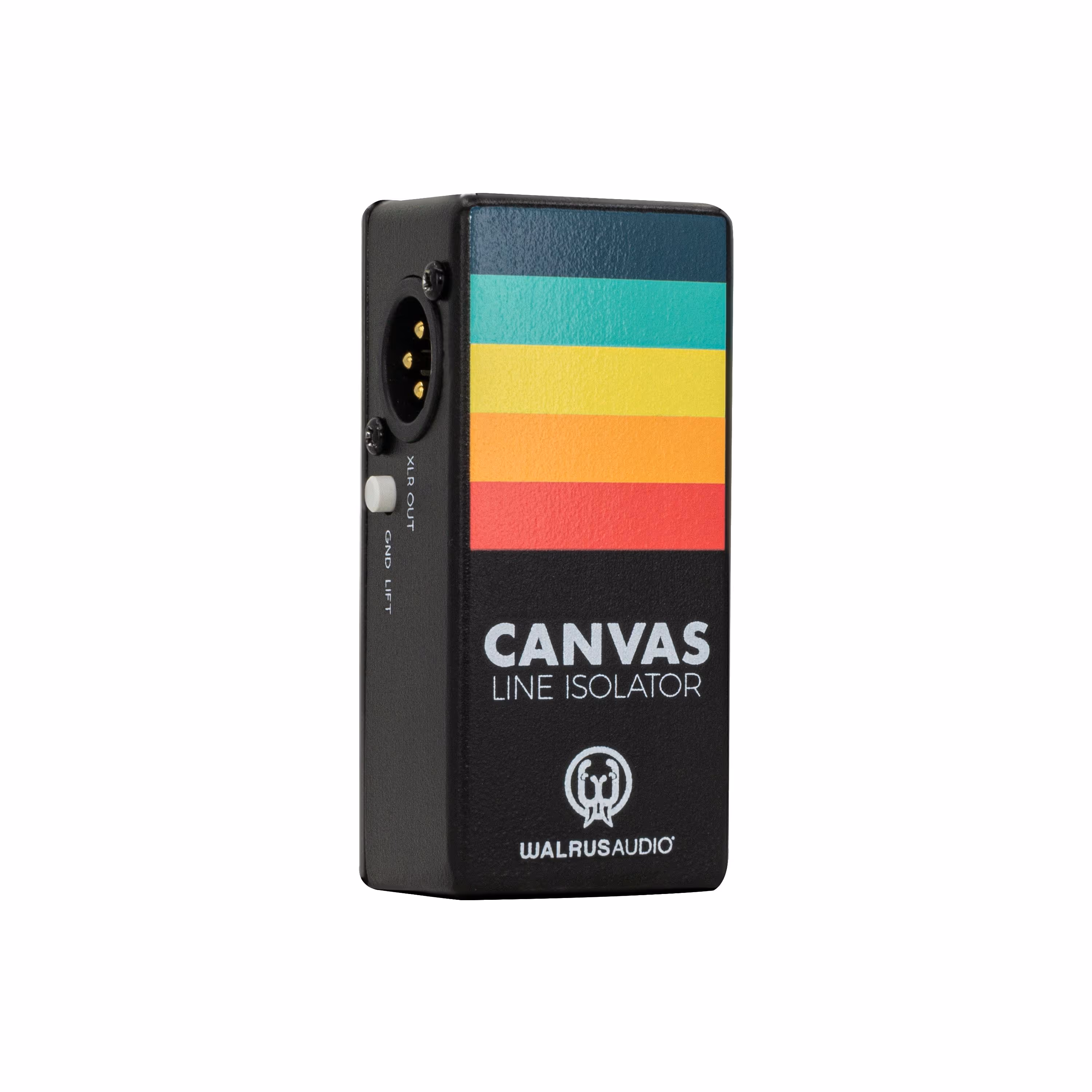

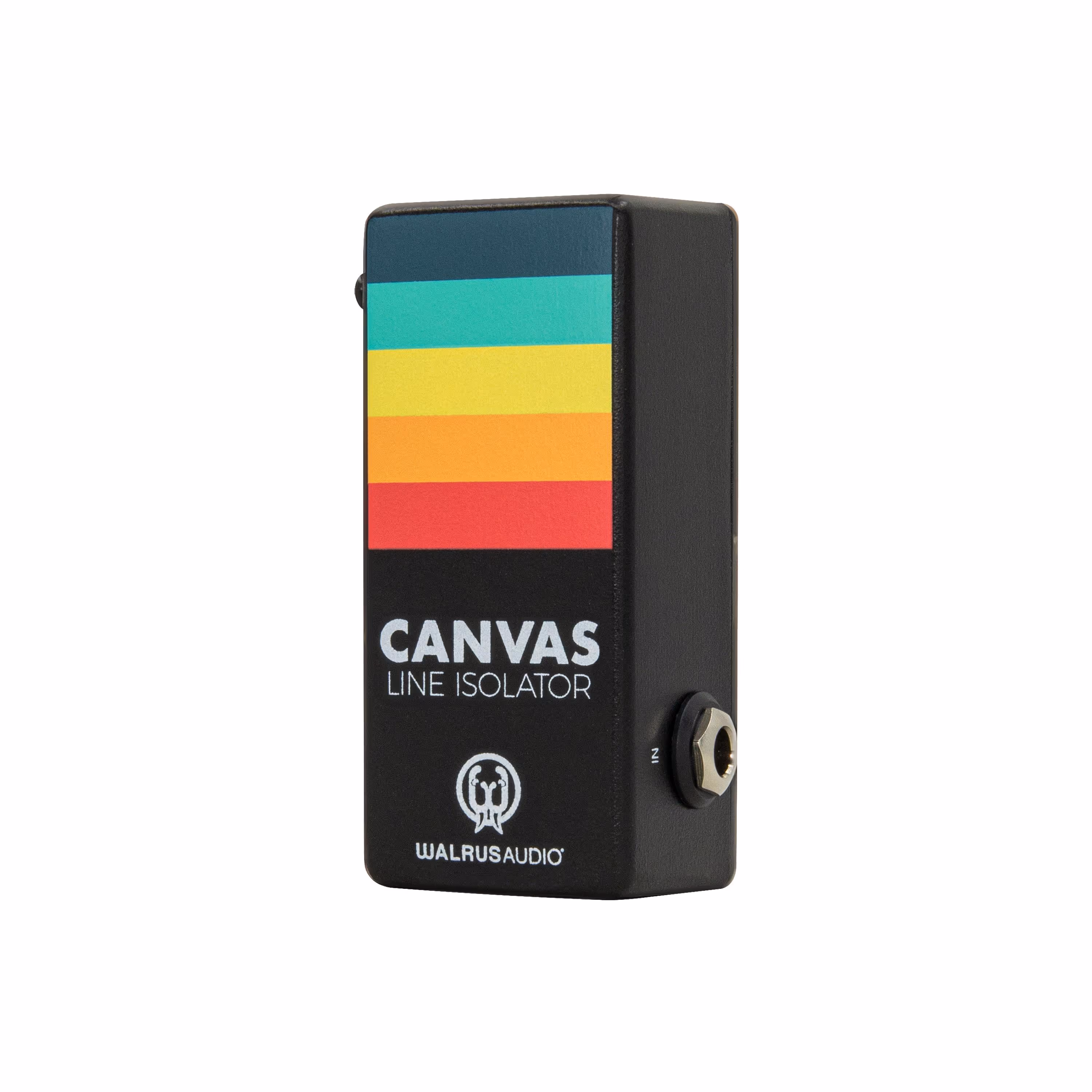

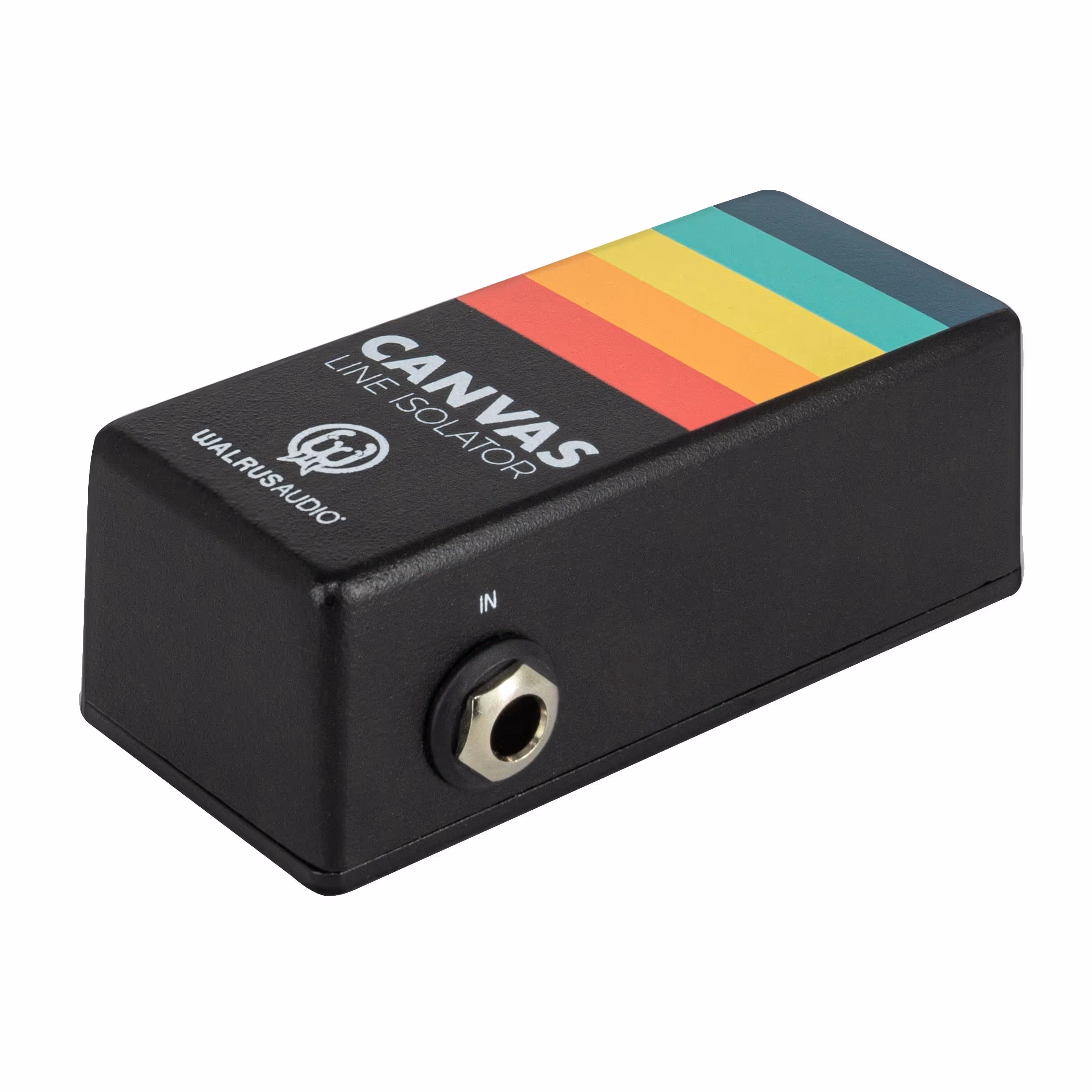

The Canvas Nano Line Isolator is a passive device that converts unbalanced signals into balanced ones for proper interfacing with recording interfaces or front-of-house mixers. Ideal for use with amp-in-a-box solutions (like the Walrus Audio ACS1) or when running active acoustic and bass guitars directly, the Canvas LI becomes the bridge to front-of-house. It maintains full signal volume while converting to a balanced output via a transformer connected to the XLR output. In LI mode, less preamp gain is required. All the essential features of a high-quality line isolator are packed into a compact, pedalboard-friendly enclosure with the signature Walrus Audio aesthetic.

Specifications

• Flat frequency response from 20Hz-20kHz

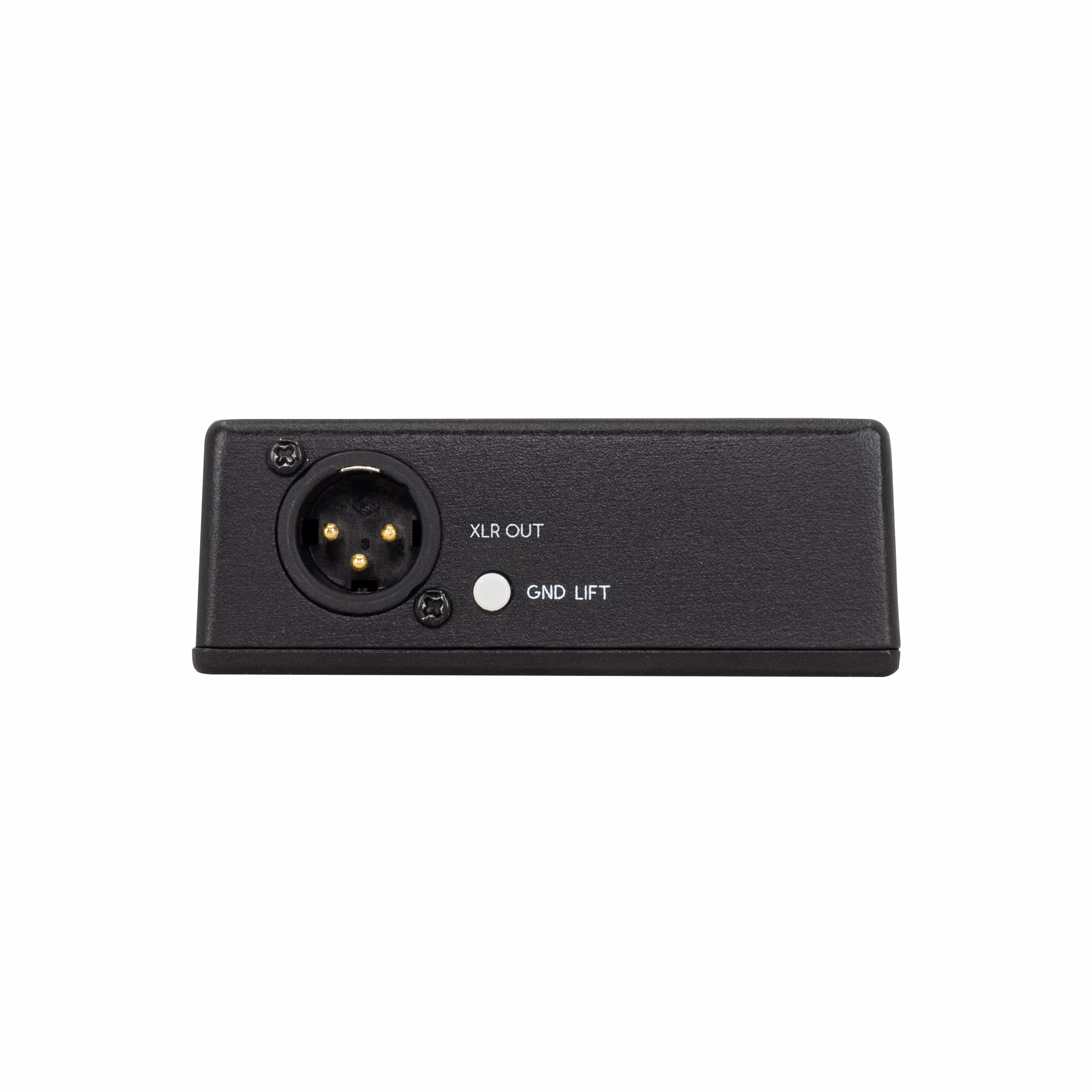

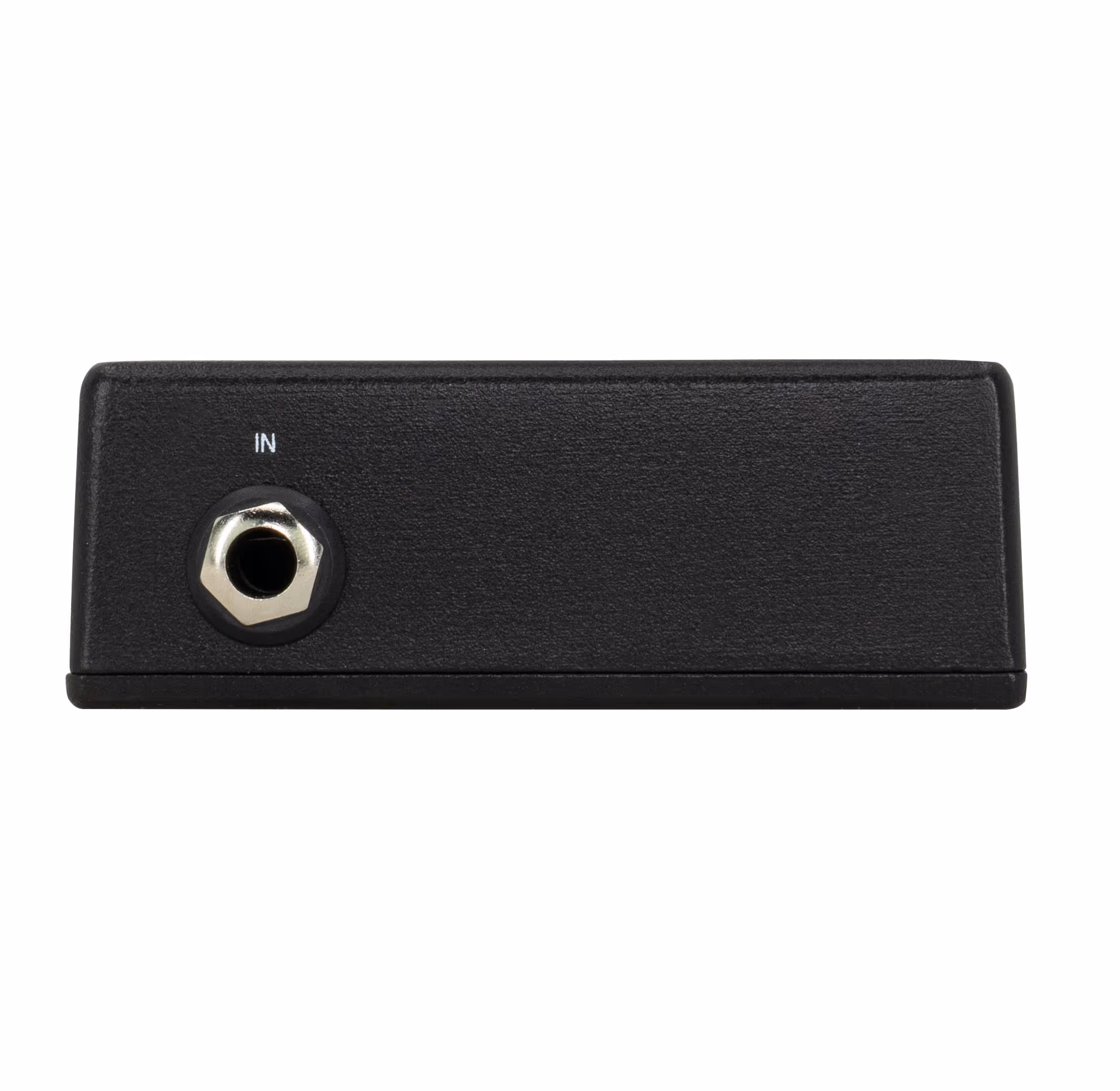

• Converts ¼” unbalanced input to XLR balanced output.
• Transformer isolated output.
• The Canvas comes in a lightly textured matte black enclosure with blue, light green, yellow, orange, red,and white ink.
• Impedance: 600 input, 600 output
• Dimensions (L × H × W) : 95 mm × 34 mm × 43 mm

‍
