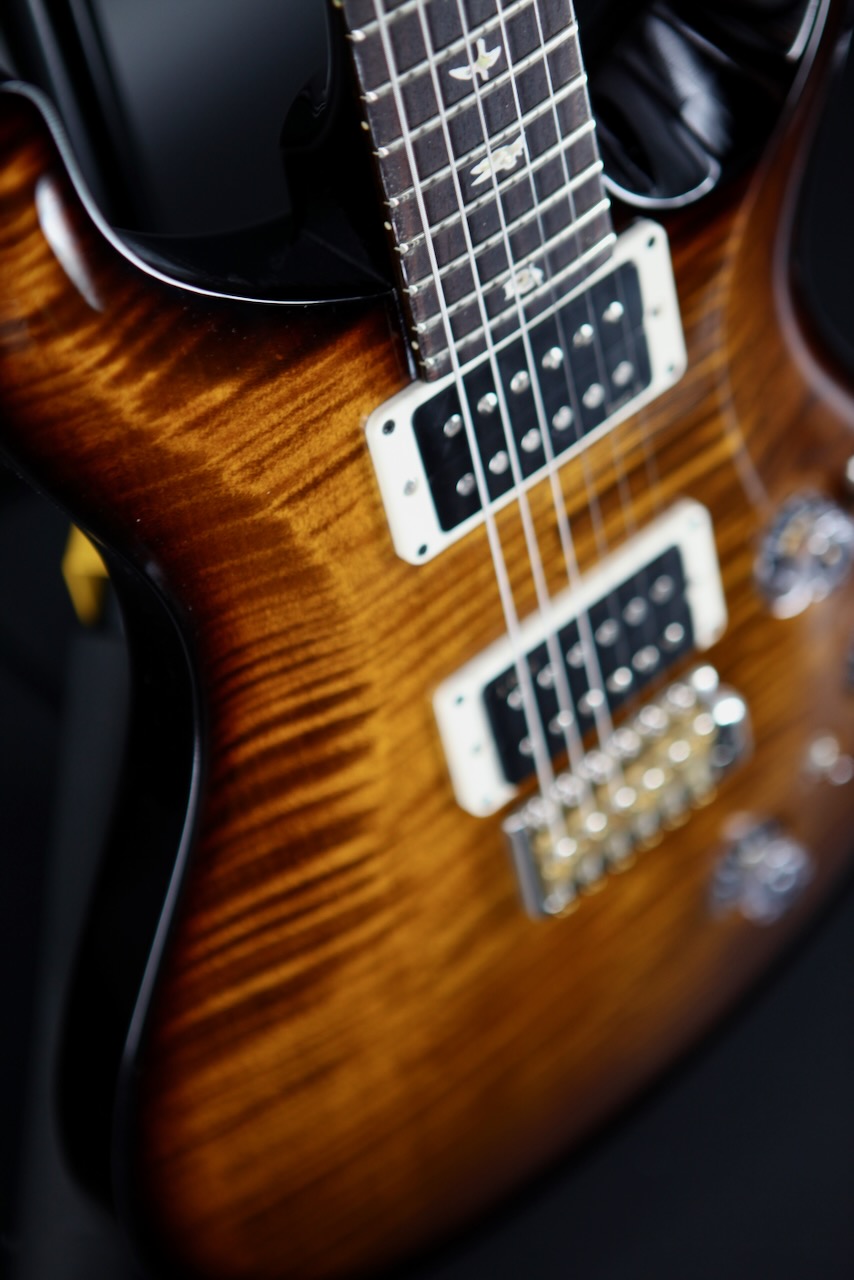

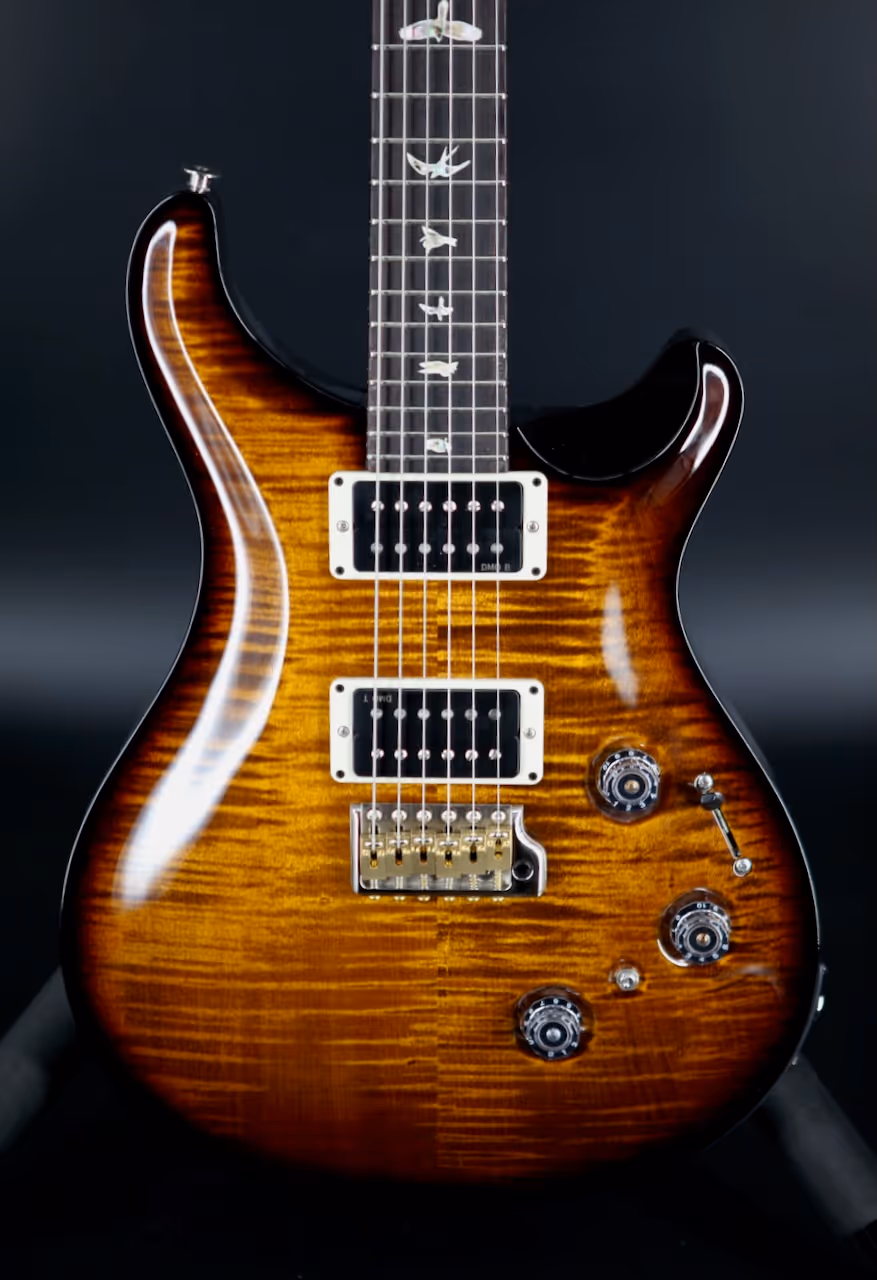

The Custom 24 Piezo boasts PRS DMO treble and bass pickups. PRS’s DMO (Dynamic, Musical, Open) pickups were personally designed by Paul Reed Smith and the PRS New Products Engineering team. From our own hands-on research into coveted vintage pickup models to advancements in signal analyzation and “tuning” technology, these pickups incorporate every detail of pickup knowledge PRS has gained in recent years of R&D. PRS DMO pickups have a “wide open” sound with vocal character, meaning they deliver clear, pleasant-sounding tones across a wide range of frequencies (bass to treble) in each pickup.

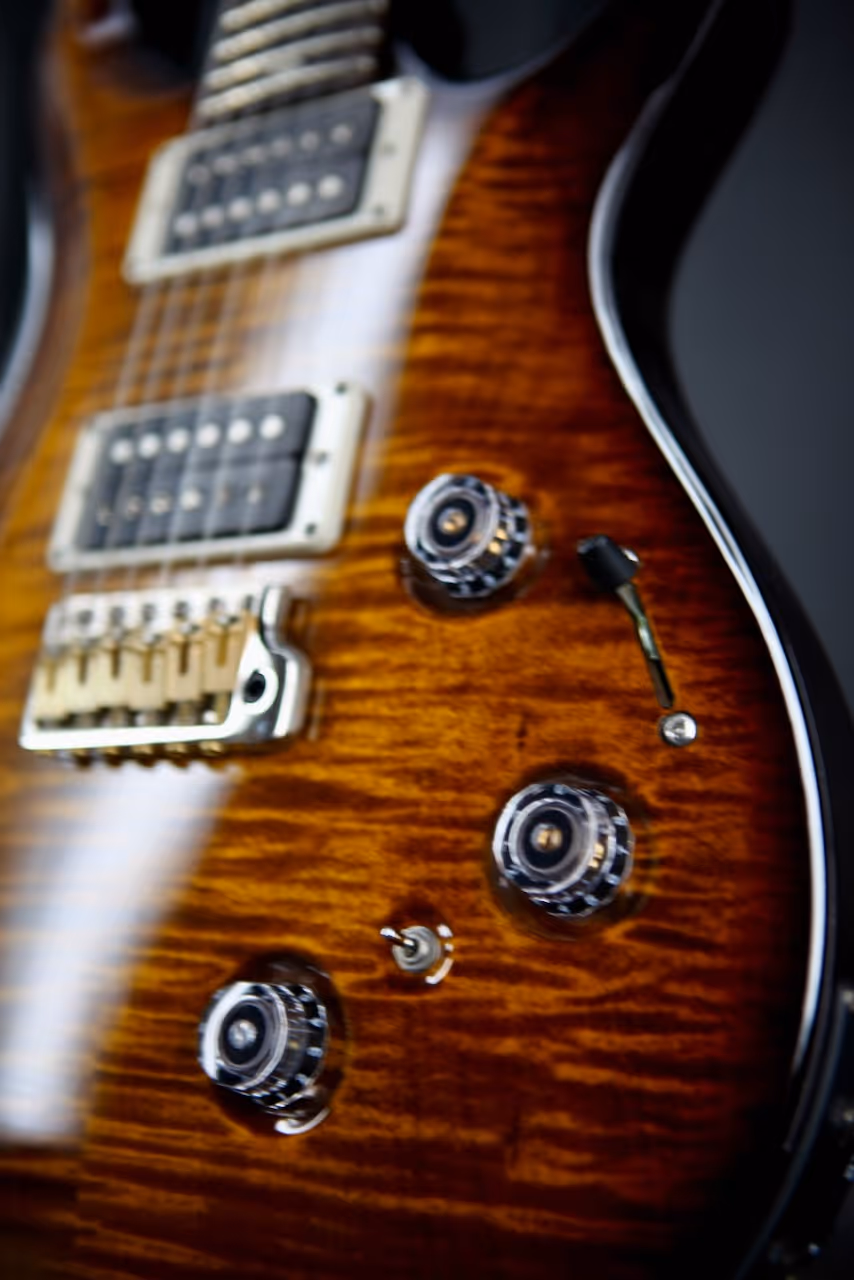

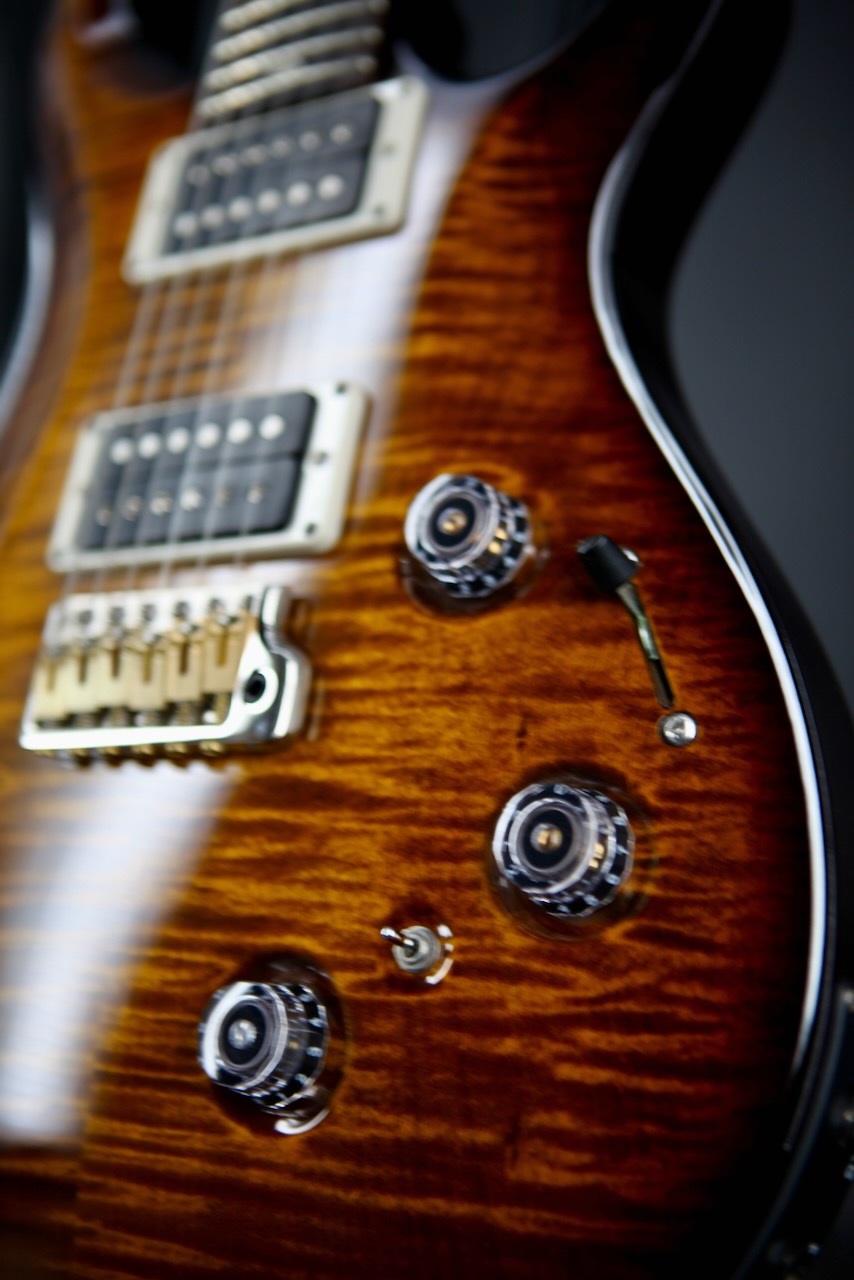

Equipped with the traditional volume/tone/5-way blade switch, this model also features a 3-way selector to switch between or blend the magnetic pickups and piezo electronics. The two output jacks allow guitarists to plug into their favorite electric or acoustic guitar amp or DI into a soundboard. By utilizing the separate blend control, the tone of the PRS DMO pickups can also be combined with the piezo acoustic sounds through a single output. With a nearly infinite range of tones, the Custom 24 Piezo is a perfect “go-to” guitar for players of all kinds.

PRS Patented Tremolo, Gen III

Meticulous design delivering sonic fidelity, player ergonomics, and revolutionary tuning stability.

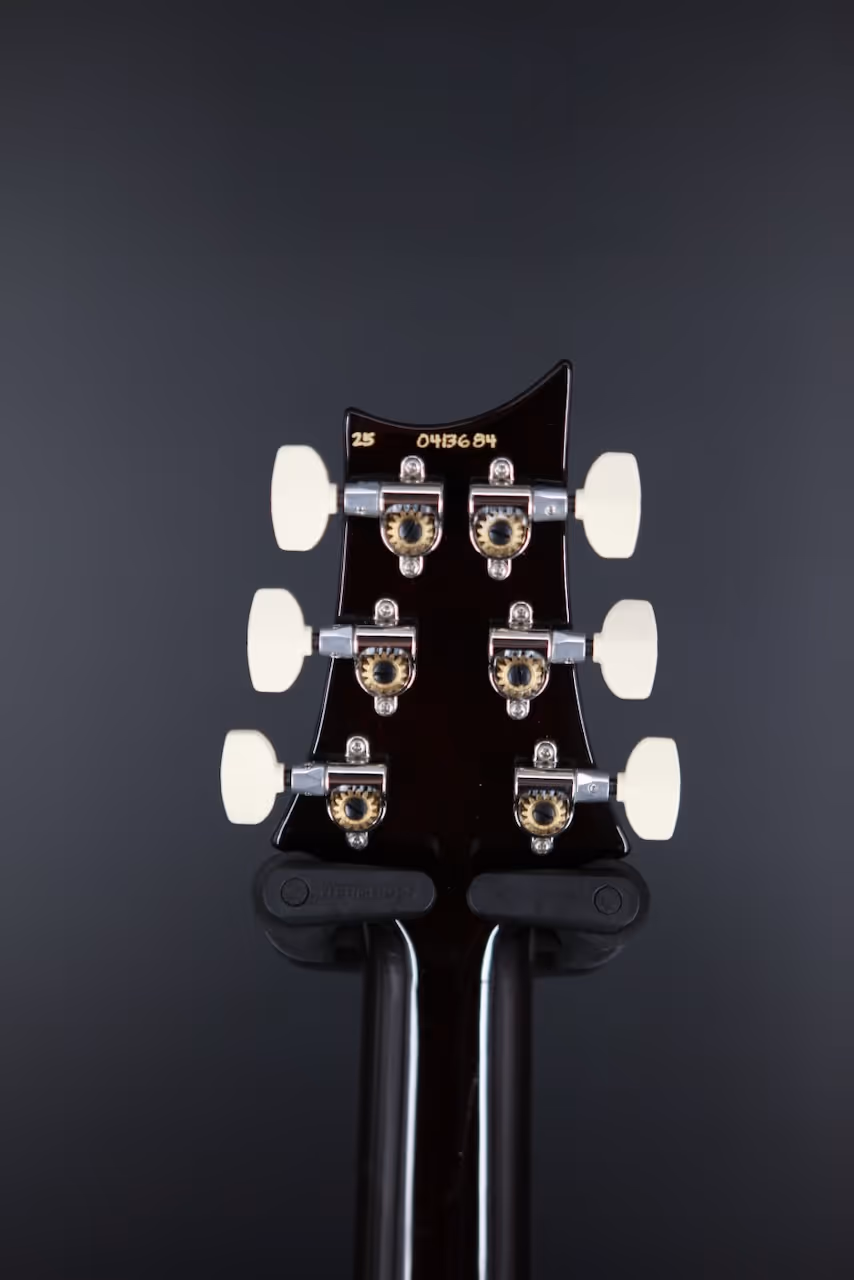

PRS Phase III Locking Tuners with Wing Buttons

Modern locking technology with vintage elegance, these lightweight tuners promote tone transfer for a louder, more resonant instrument.

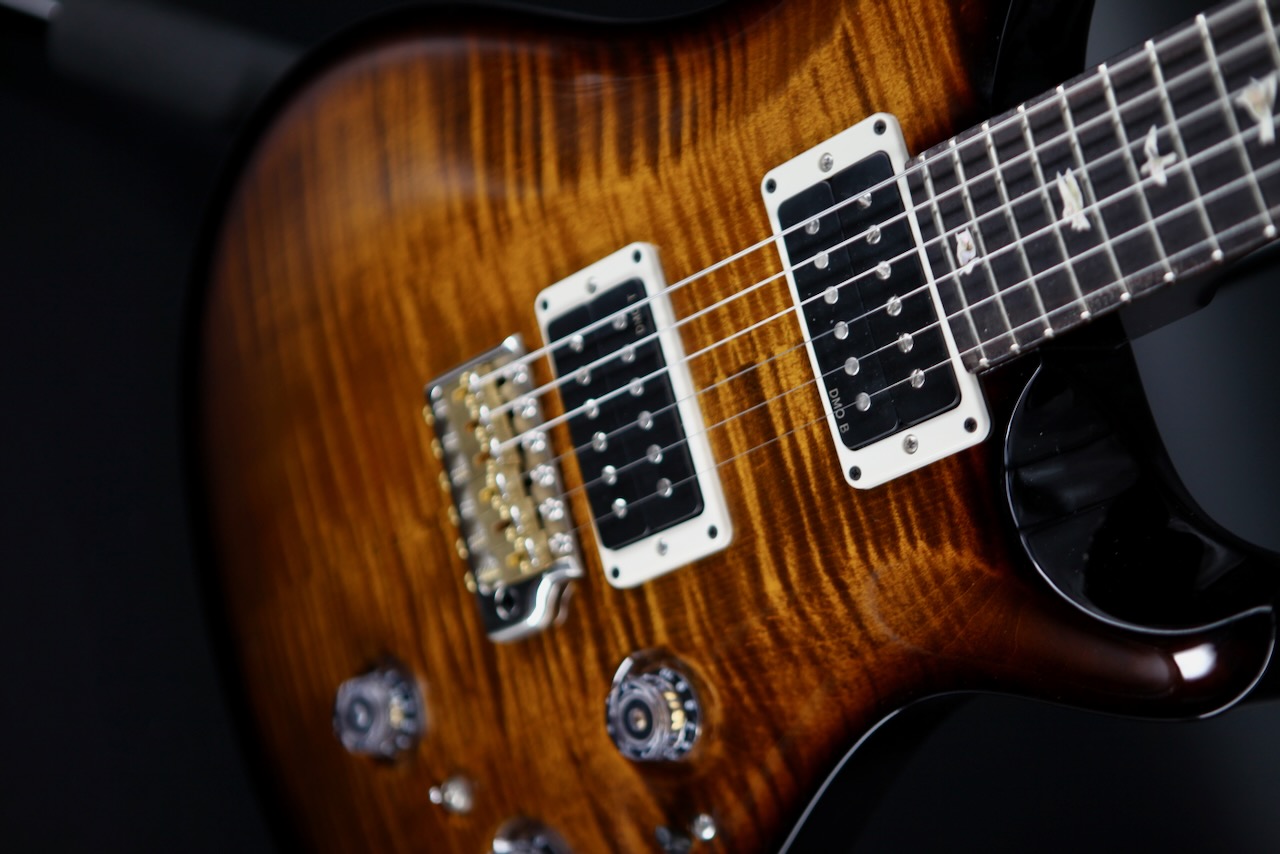

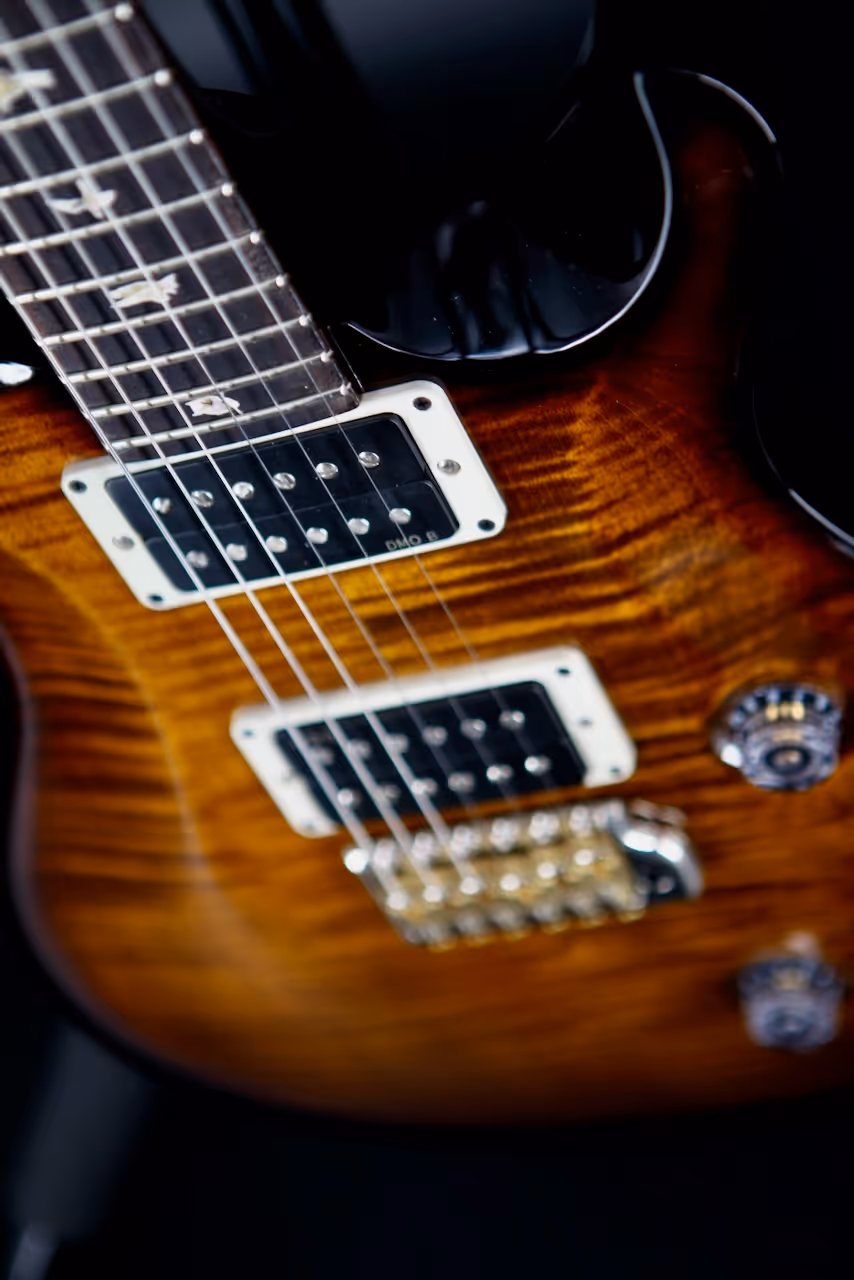

PRS DMO Pickups

“Dynamic, Musical, Open” pickups with balanced tonal range and vocal quality.

‍

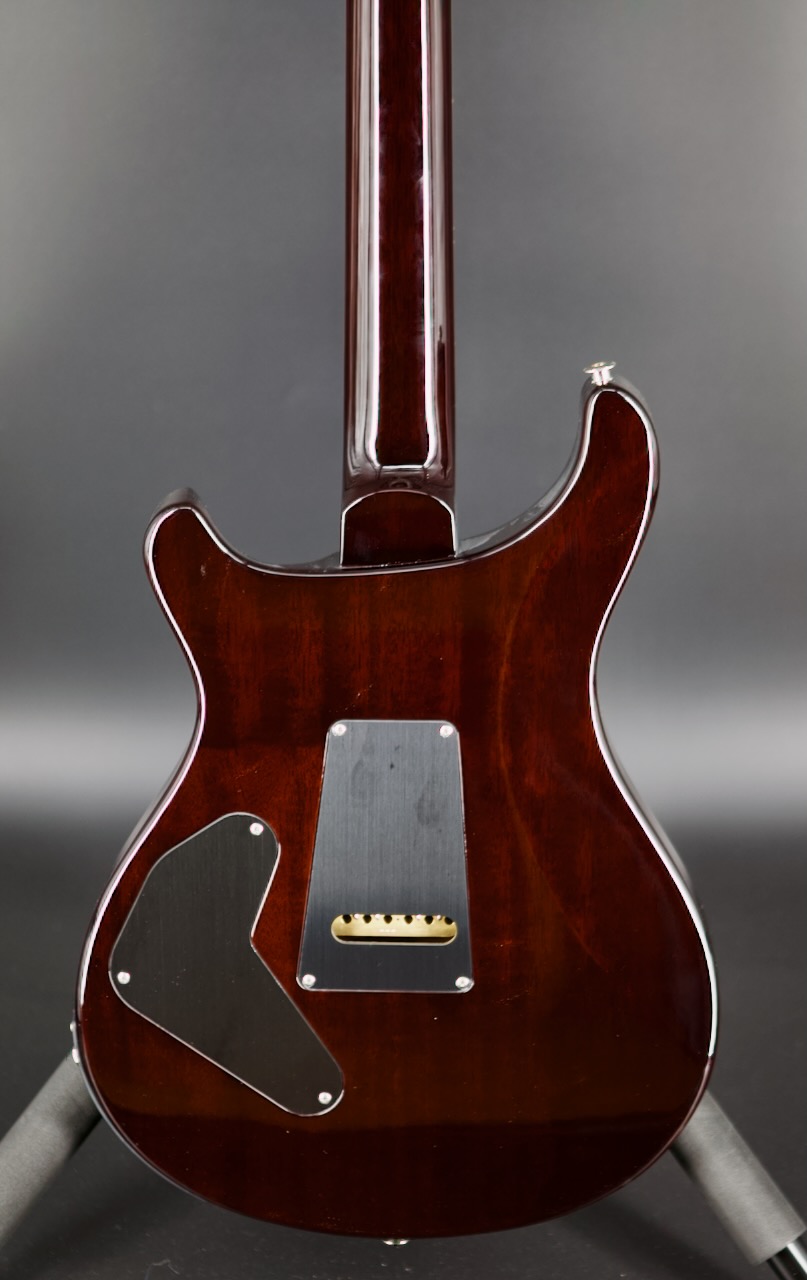

BODY

Body Construction : Solidbody

‍Top Wood : Maple

‍Back Wood : Mahogany

‍Top Carve : Violin

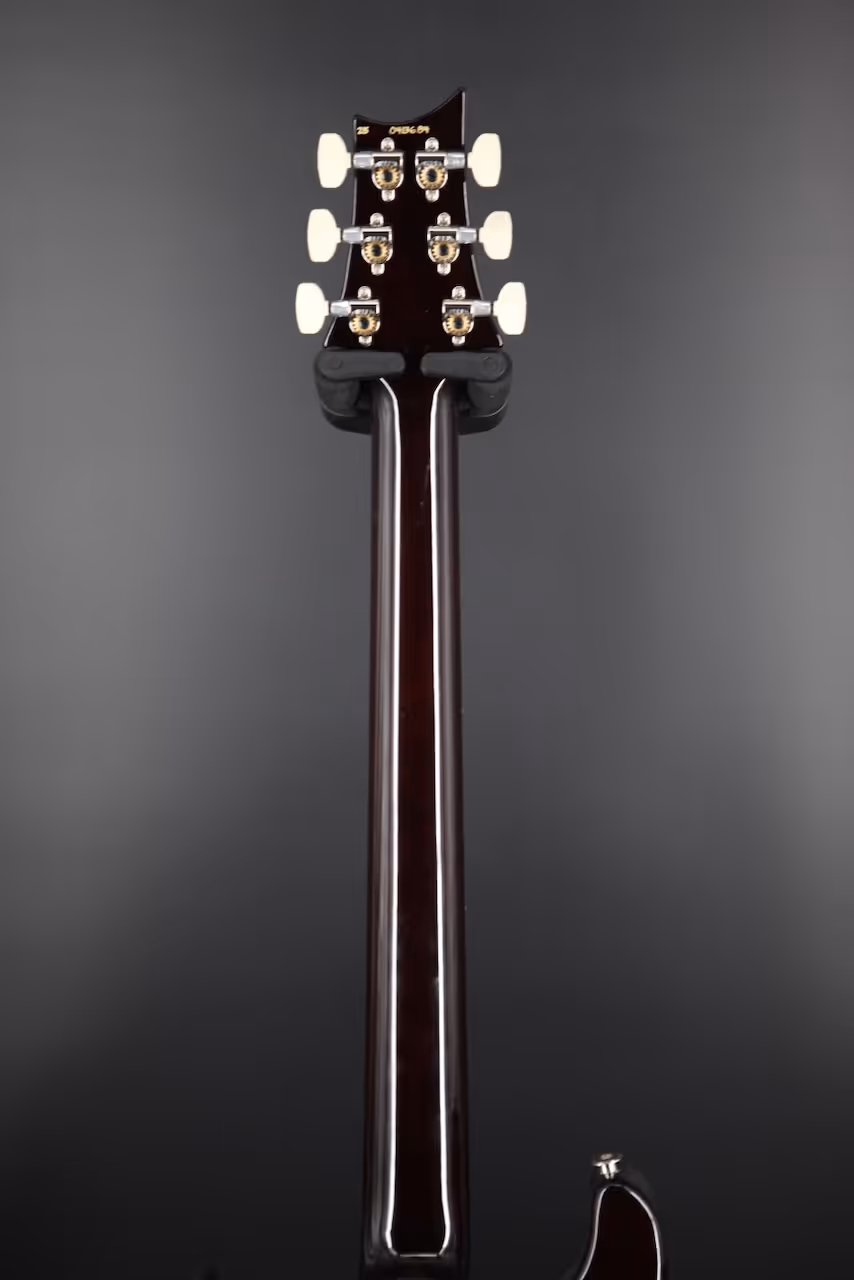

NECK

Number of Frets : 24

‍Scale Length : 25"

‍Neck Wood : Mahogany

‍Neck Construction : One-Piece

‍Truss Rod : PRS Double-Acting

‍Neck Shape : Pattern Thin

‍Neck Depth at the 1/2 Fret : 53/64"

‍Neck Depth at the 12 1/2 Fret : 57/64"

‍Neck Width at the Nut : 1 11/16"

‍Neck Width at the Body : 2 1/4"

‍Fretboard Wood : Rosewood

‍Fretboard Radius : 10"

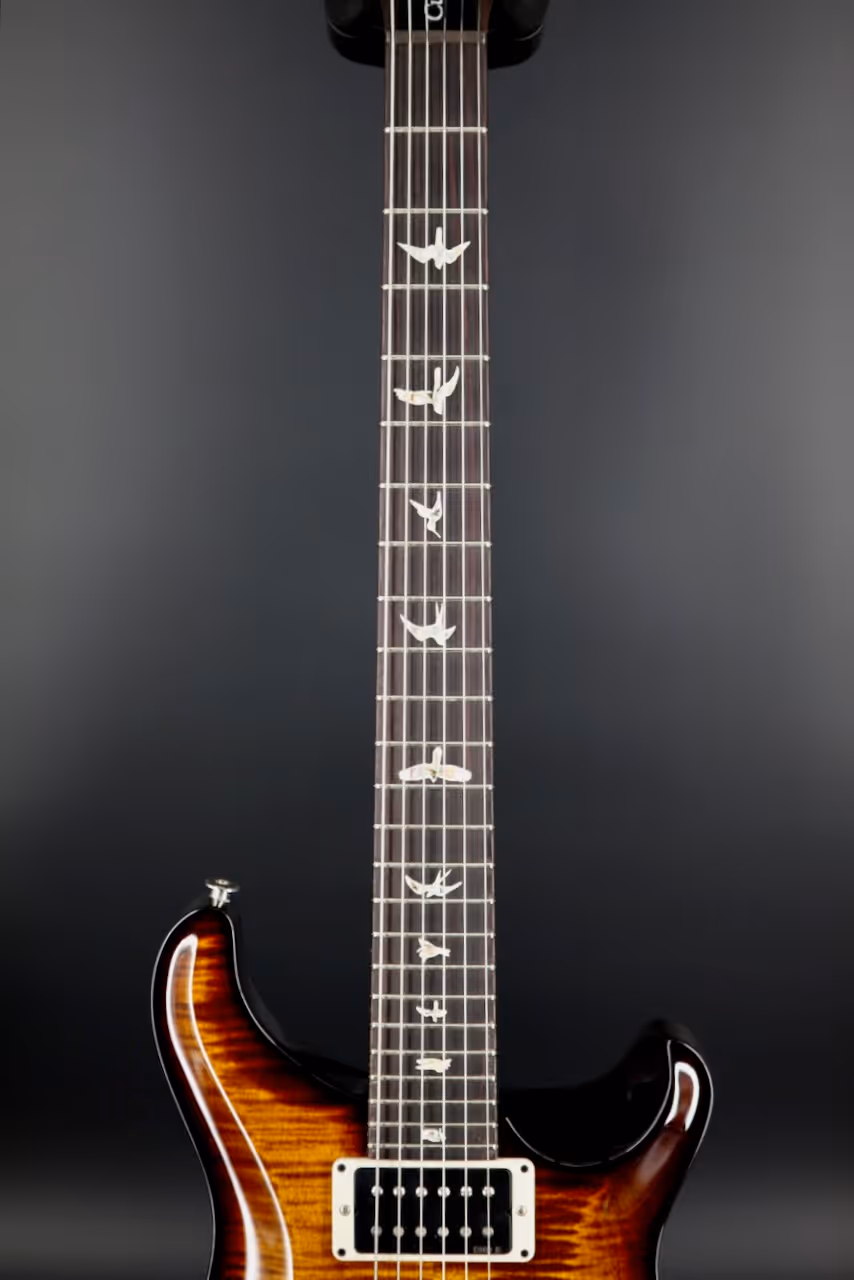

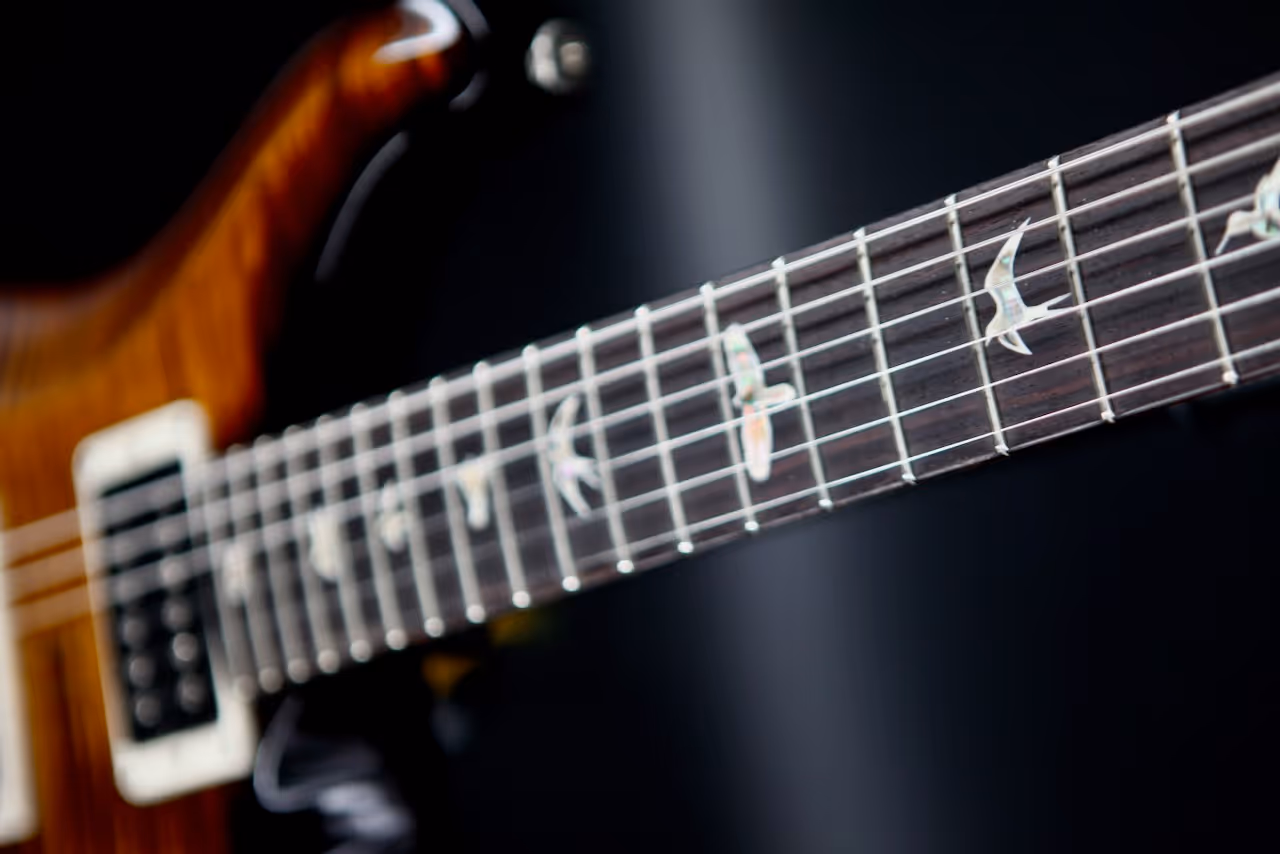

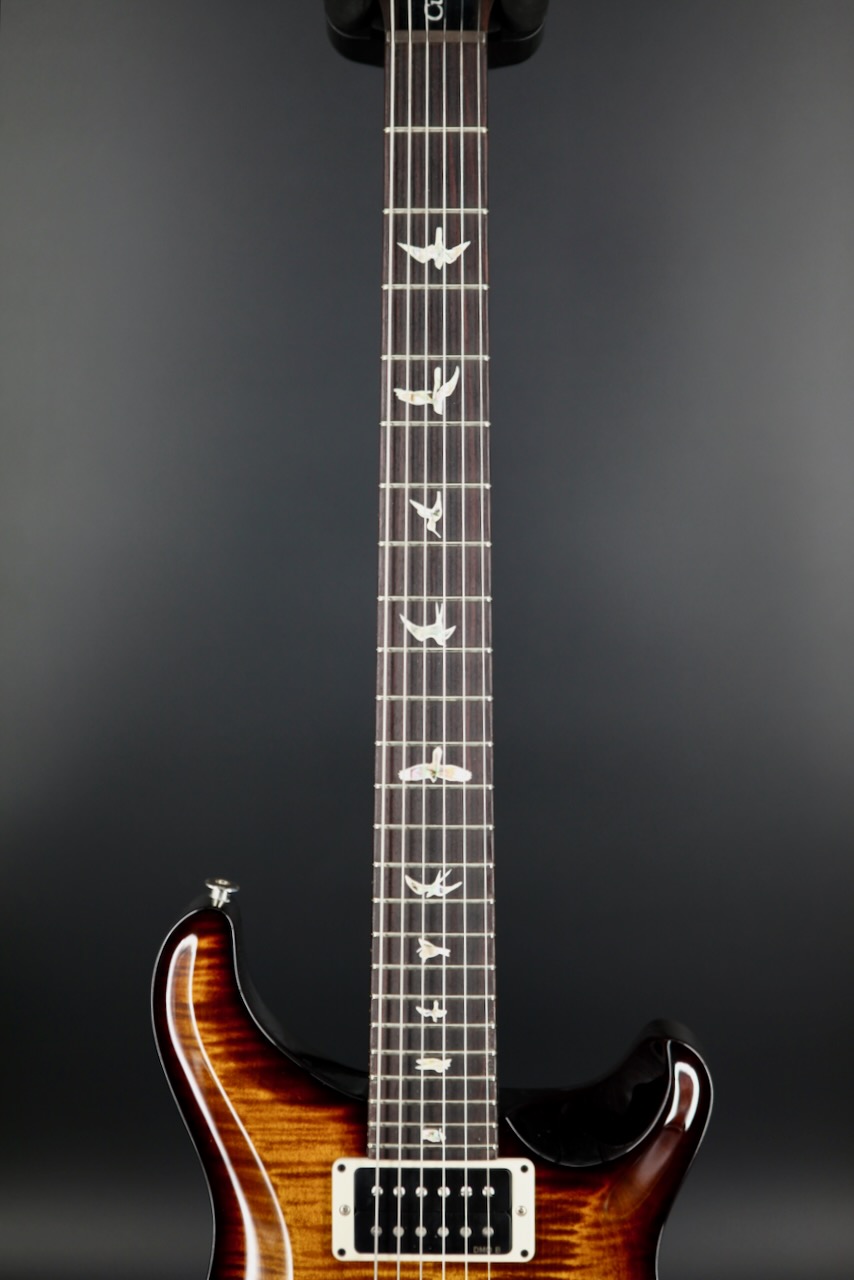

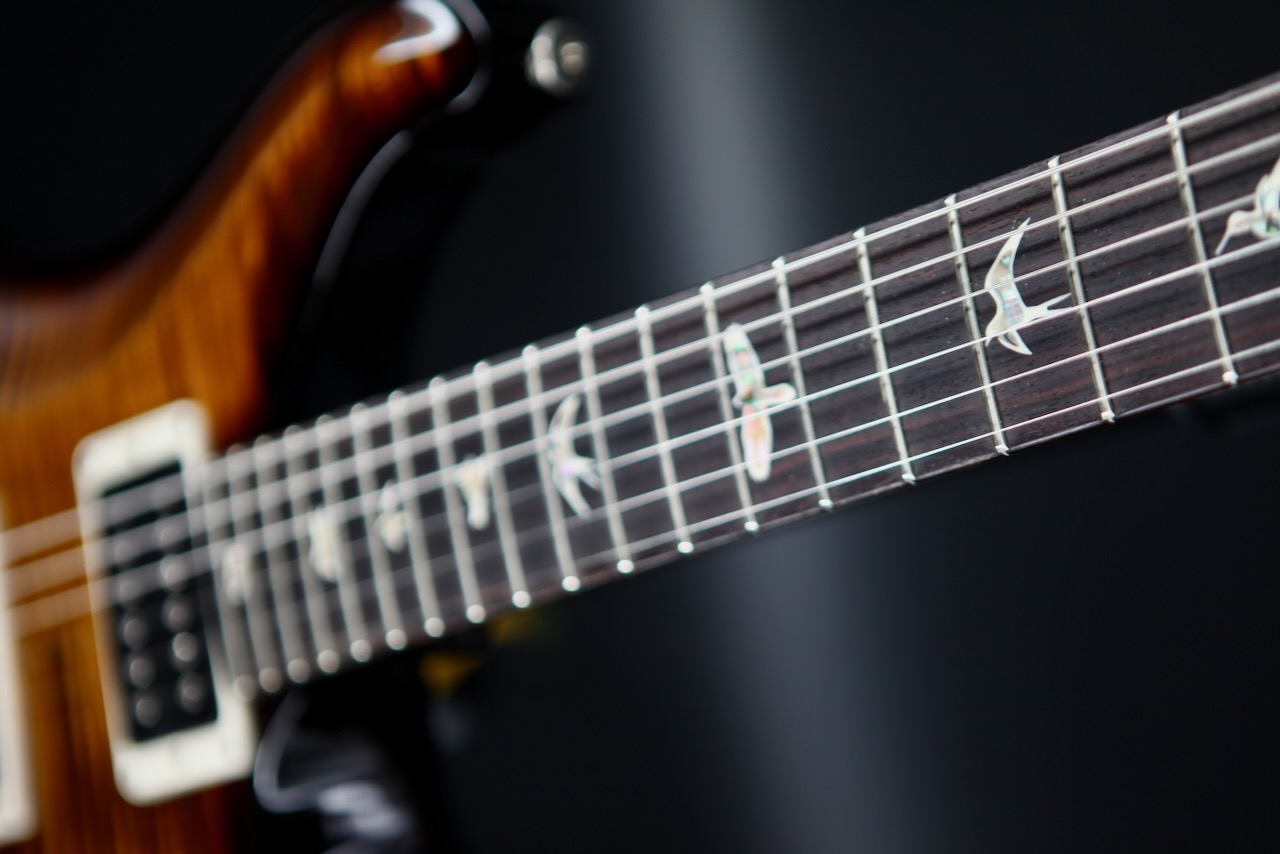

‍Fretboard Inlay : Birds

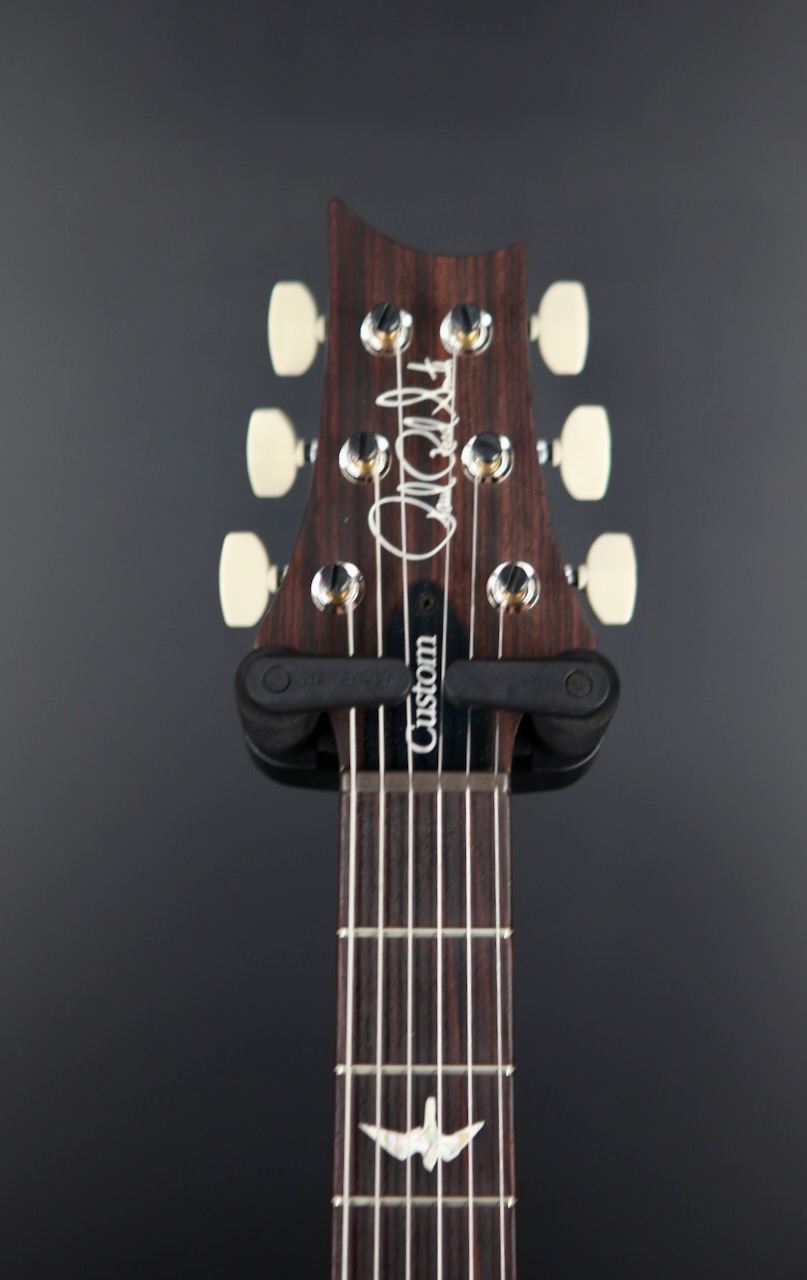

‍Headstock Logo : Signature, Inlaid

NECK/BODY ASSEMBLY

Neck/Body Assembly Type : Set

‍FINISH

Finish Type : High-Gloss Nitro

‍HARDWARE

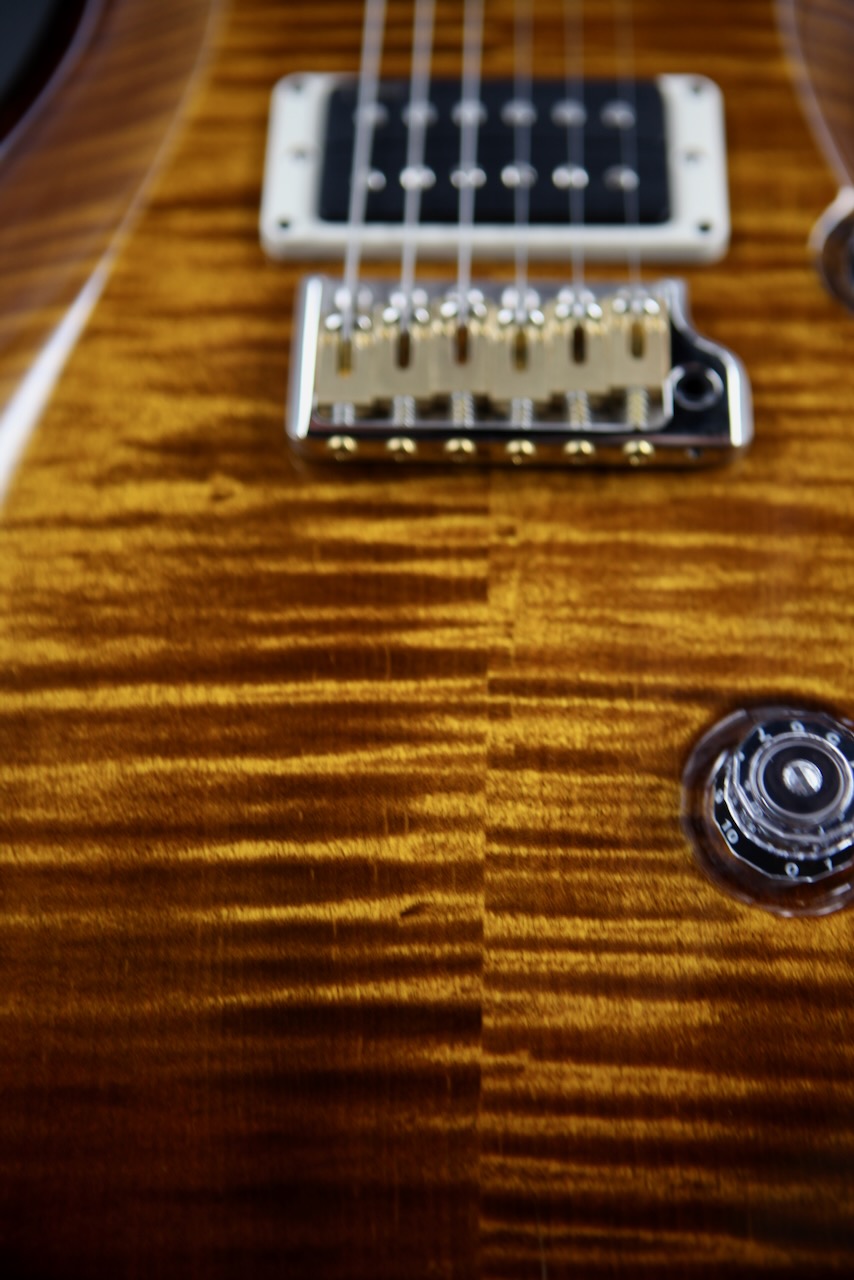

Bridge : PRS Patented Tremolo, Gen III Piezo

‍Tuners : PRS Phase III Locking Tuners with Wing Buttons

‍Hardware Type : Nickel

‍Nut : PRS

‍Truss Rod Cover : "Custom"

‍ELECTRONICS

Treble Pickup : DMO

‍Bass Pickup : DMO

‍Controls : Volume and Tone Control with 5-Way Blade Pickup Switch and LR Baggs/PRS Piezo (3-Way Selector and Blend Knob)

‍ADDITIONAL INFO

Strings : PRS Signature 10-46

‍Tuning : Standard (6 String): E, A, D, G, B, E

‍Case : Hardshell Case
