• Five Gain Stages — Several stages before the master volume means that the Archon’s lead channel is voiced to cover everything from classic rock to metal with full, addictive distortion.
• Spellbinding Clean Channel — Provides warm yet vibrant tones that retain clarity even at high volumes. There is ample headroom too, creating an excellent platform for pedals!
• 6CA7 Power Tubes — Fall between EL34 and 6L6 tubes, offering the best of both worlds. 6CA7’s are full and articulate with smooth high-end and tight low-end. They chug, distort and get heavy without over-saturating.
• Intuitive Tone-Shaping — Each channel features volume, treble, middle, bass and master volume controls as well as a bright switch to sweeten the highs.
• Global Presence & Depth Controls — Work to modify the feedback network of the amp to unleash the potential of the top-end and low-end respectively.
• Tube-Driven Effects Loop — Allows you to seamlessly integrate your favourite time-based and modulation stompboxes.
• Celestion V-Type Speaker — Projects full, extended lows and sweet mid-range.
• 1-Button Footswitch — Included switch lets you easily change channels on-the-fly.

Electronics

• Wattage (Nominal): 50
• Output Transformer: 19H01-OPT
• Speaker: Celestion V-Type 70W

Tubes

• Power Tubes: 2x JJ 6CA7
• Preamp Tubes: 6x JJ ECC83S
• Preamp Positions: V1: Input, V2: Clean, V3&4: Lead, V5: Loop, V6: Phase Inverter

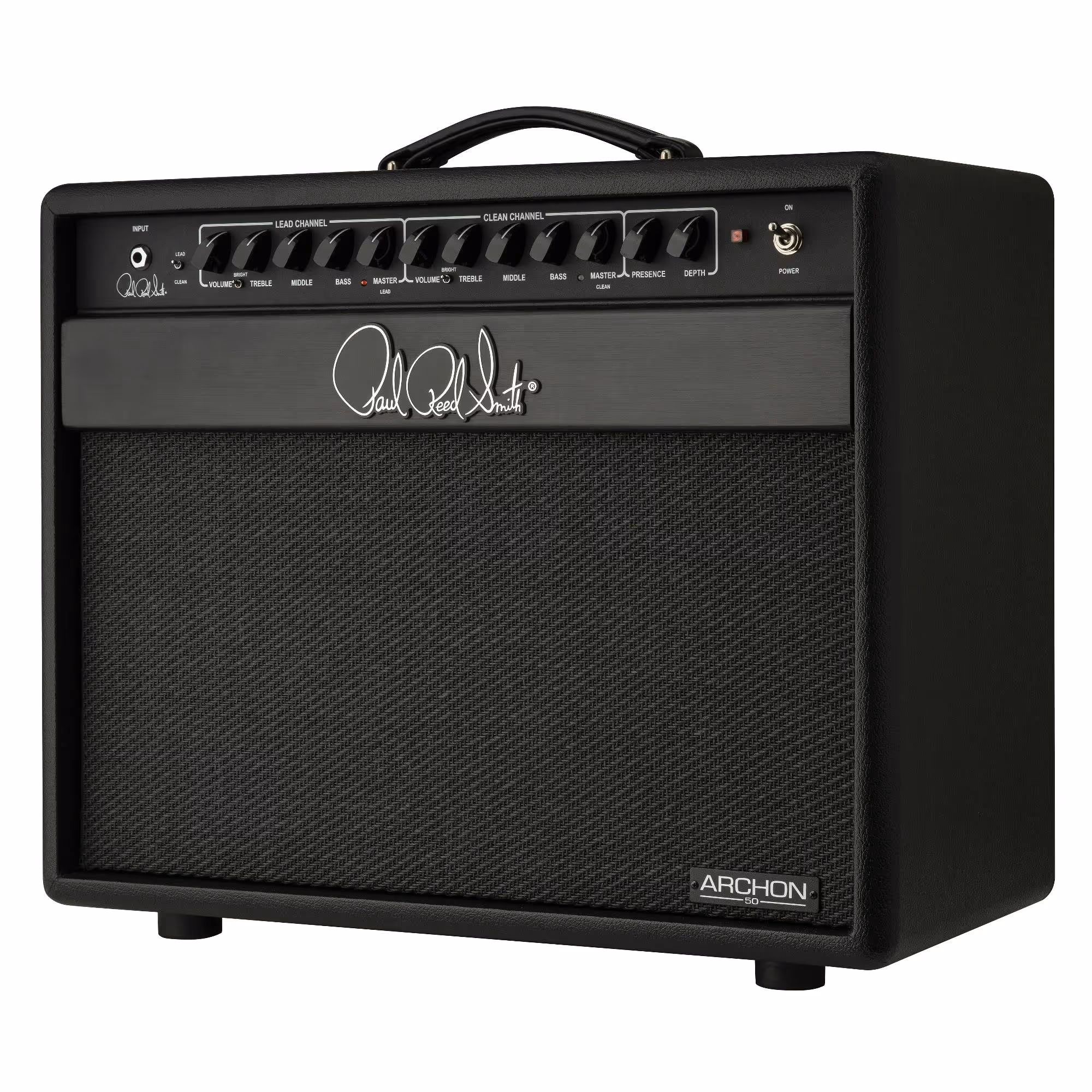

Front Panel Controls

• Lead Channel Controls: Volume, Bright (Off/On), Treble, Middle, Bass, Master
• Clean Channel Controls: Volume, Bright (Off/On), Treble, Middle, Bass, Master
• Global Controls: Presence, Depth

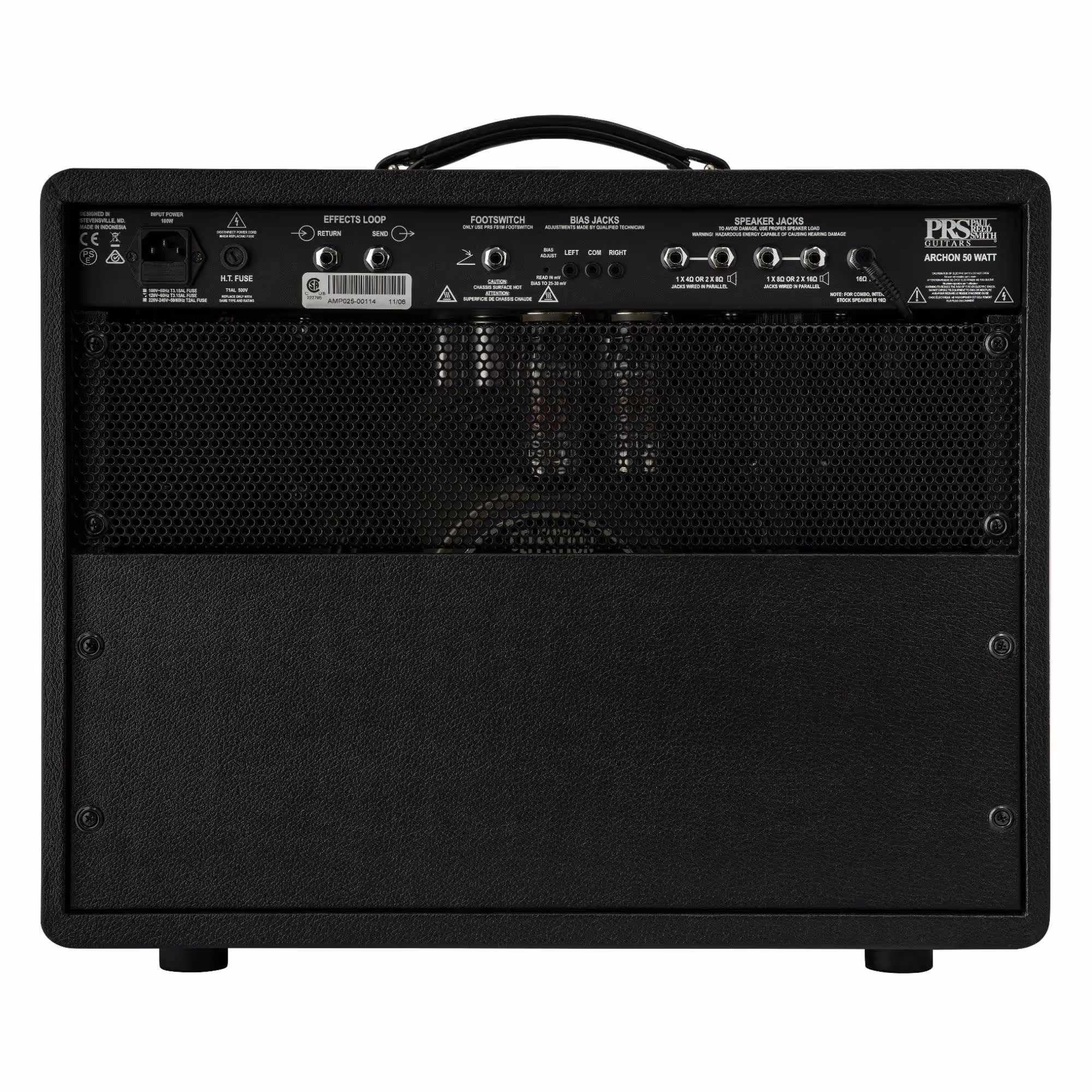

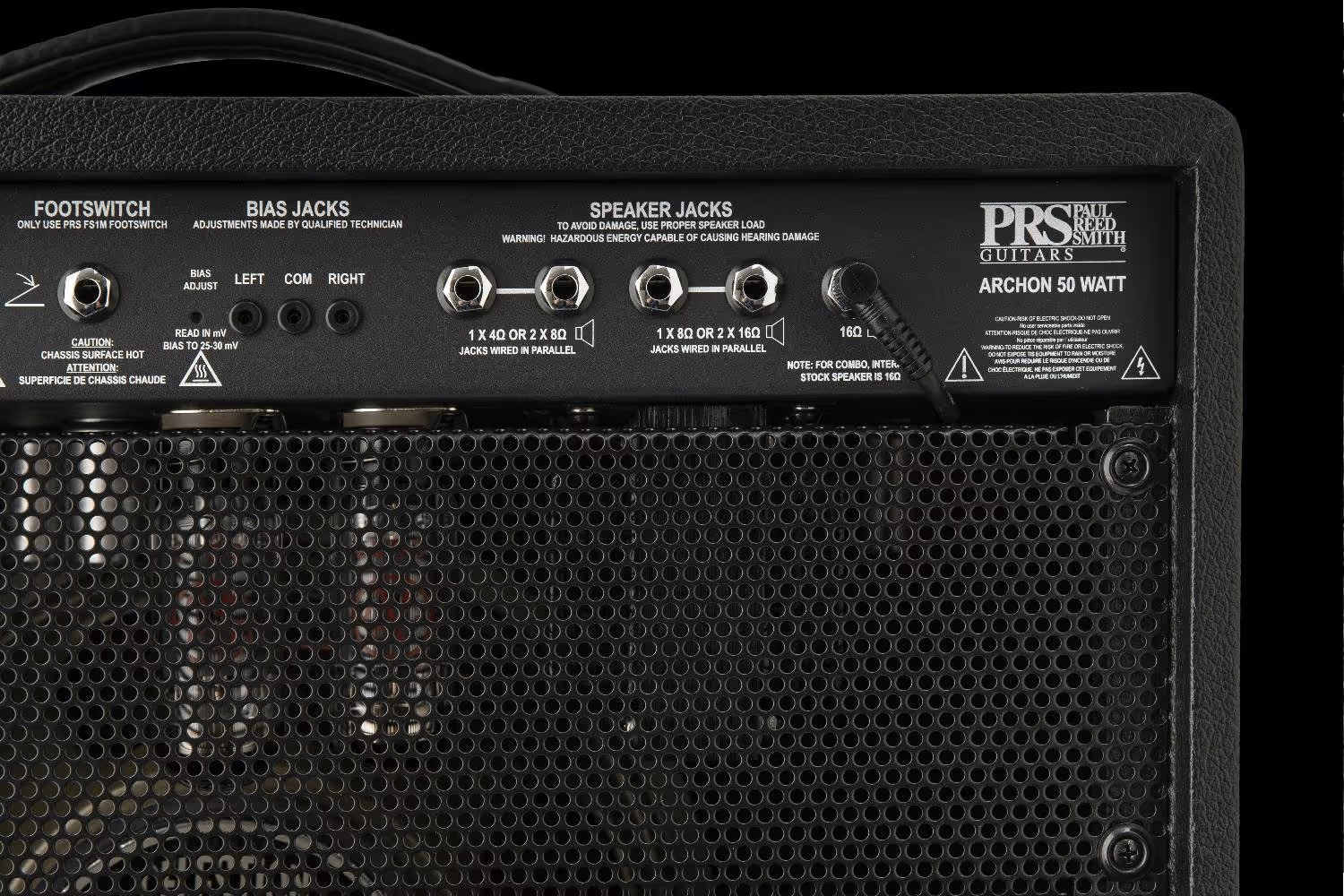

Back Panel Features

• Inlet: IEC (with Integrated Fuse)
• Effects Loop: Series (Tube Driven)
• Bias: Adjustable
• Channels: 2
• Output Jack Configuration/Ohm Selection: 2x4 Parallel, 2x8 Parallel, 1x16

Materials/Covering

• “Shell” Material Covering: Black Textured Vinyl
• Grill Cloth: Black British-Style Knitted Weave
• Piping: Black Embossed Welt
• Trim Panel: Brushed Black Aluminium

Measurements

• Amp Width: 21.5”
• Amp Depth: 10”
• Amp Height: 18"
• Amp Weight: 42.8 lbs

Accessories

• Footswitch: 1-Button (for Channel Switching)
• Cover: N/A

‍
