Unlock Your True Potential

Designed in collaboration with Ron Menelli, the premier loop switching expert called on by the pros, the Switchboard utilizes five rearrangeable relay true bypass effects loops combined with a powerful processor to intuitively reroute your pedal board - all while maintaining a completely analogue, high-fidelity signal path. Use the Switchboard to access any combination of pedals in any order, toggle multiple or individual effects on and off, and even control your amp’s footswitches and MIDI-enabled pedals.

User-Friendly Interface

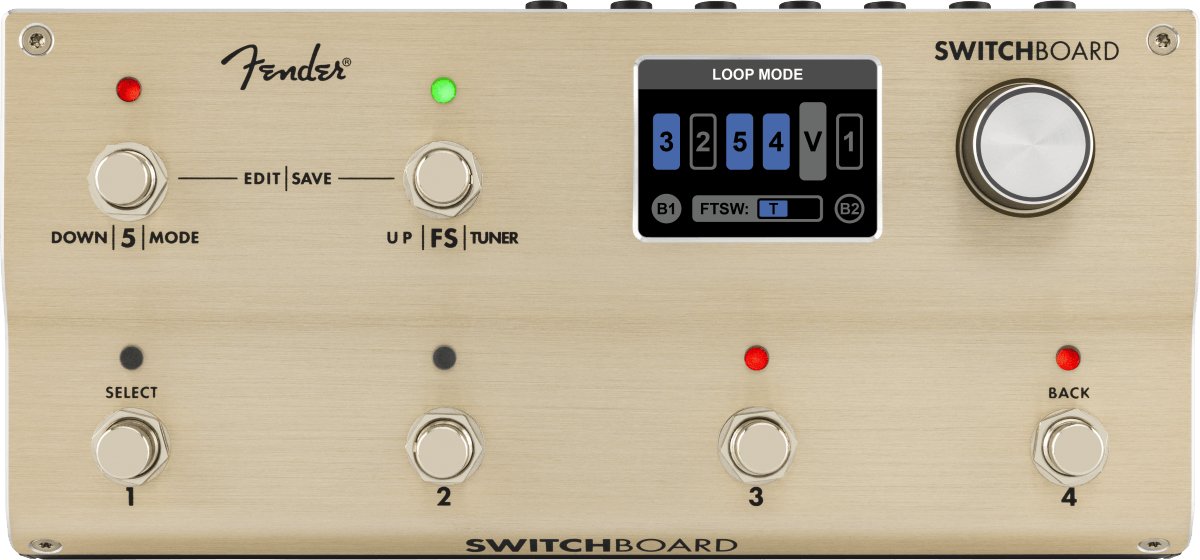

The Switchboard’s graphic user interface and easy-to-use encoder knob make crafting presets in real-time straightforward and fun. The full-colour LCD screen displays bold visual graphics, so you always know what pedals are on and what preset is currently active. Packed with 500 user presets, a built-in professional tuner, two high-fidelity buffers, a built-in volume pedal and much more, the Switchboard provides pro-level board control in a user-friendly package.

• Rearrangeable Effects Loops - Explore entirely new tones from your same old pedals by simply rearranging their order. Place reverb before your fuzz. Place your chorus at the end of your chain. Experiment to create truly unique sounds.
• Integrated Volume Pedal & Tuner - Connect an expression pedal to the EXP Jack to take control of the internal Volume Pedal. Place it anywhere in your signal path or bypass it entirely. Press and hold the FS Footswitch to mute your signal and access a professional tuner at any time.

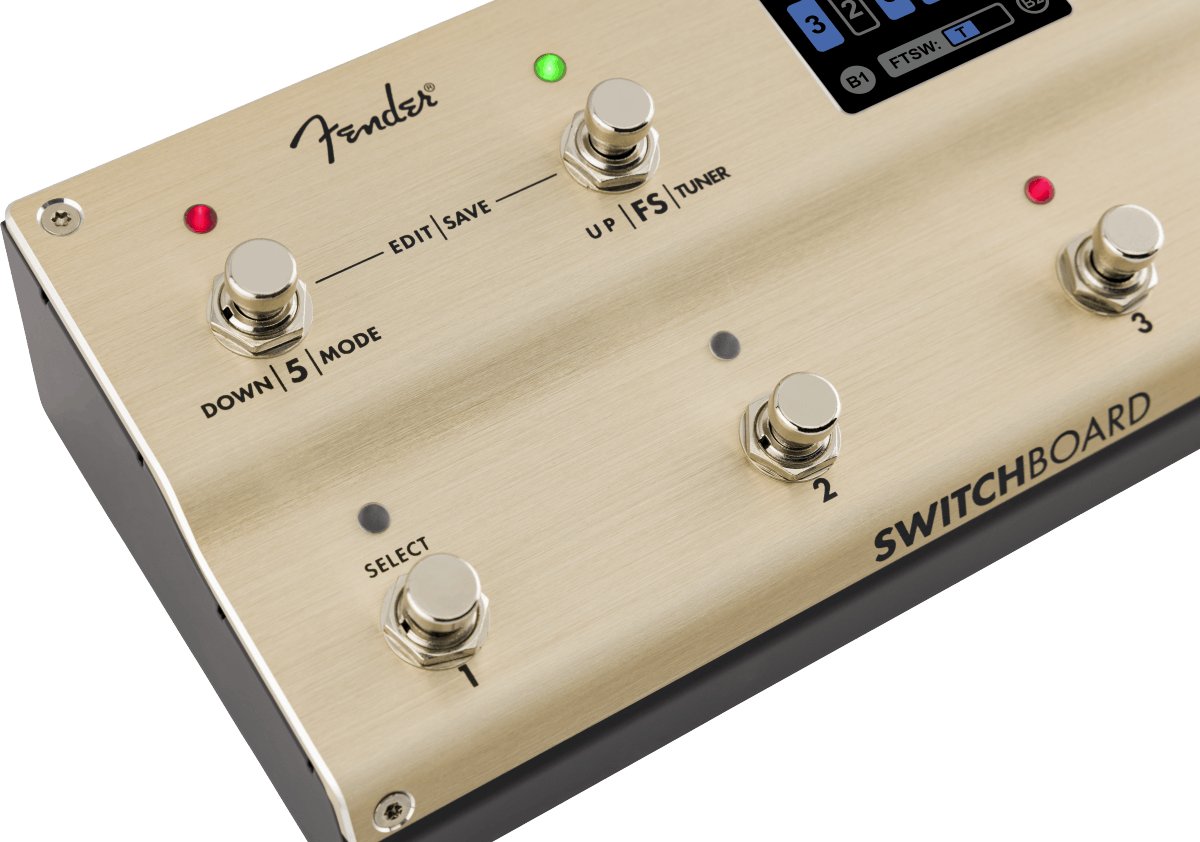

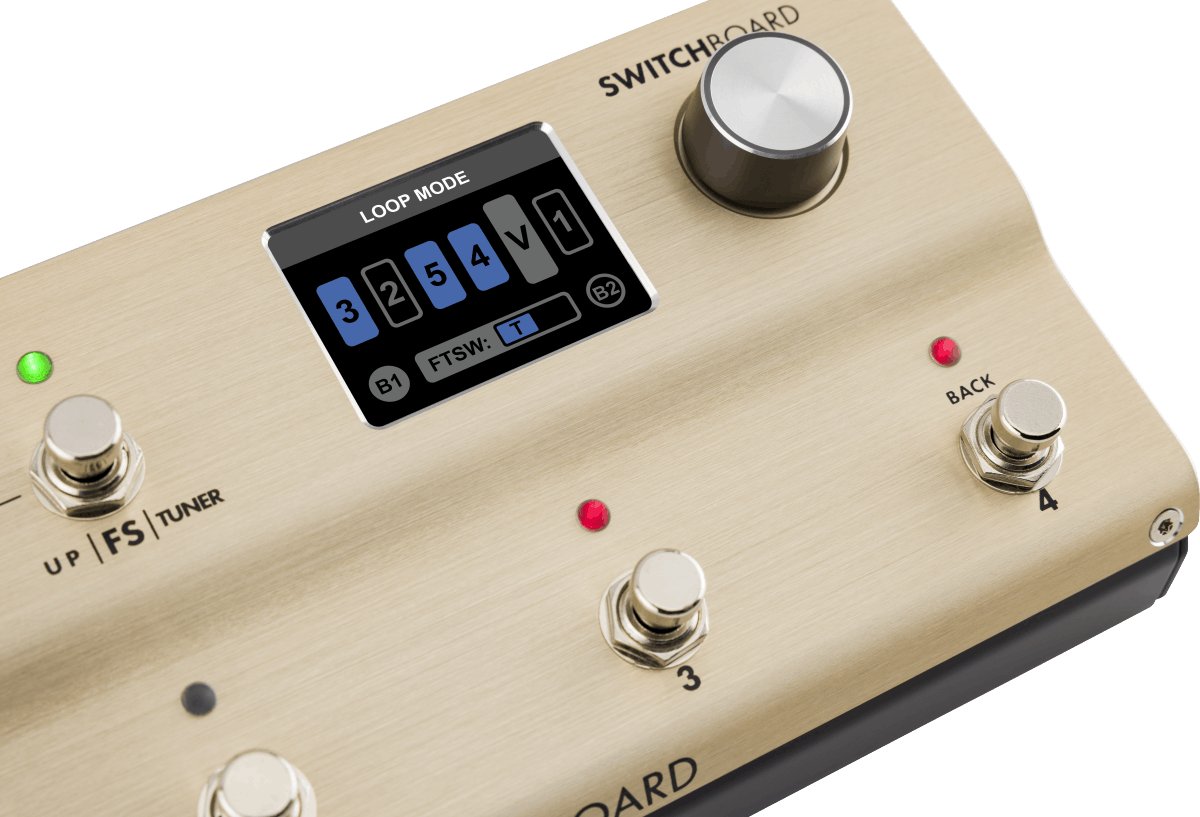

• Loop Mode - Delivers performance-focused real-time pedalboard control and the ideal space for crafting new presets. Using the six footswitches, Loop Mode consolidates turning on/off your five effects and an external footswitch to one location - defeating “tap dancing” for good.
• Editor Mode - Provides full control of all parameters saved to each preset using an easily accessible graphic menu. Edit effect loop order and status, select FTSW conductors to be activated, turn the buffers on and off, edit MIDI messages and name your presets.
• Bank Mode - A streamlined interface for organizing and accessing 100 banks of user-made presets. Use the up and down footswitches to scroll through banks while footswitches 1-4 instantly recall one of the four presets within each bank.

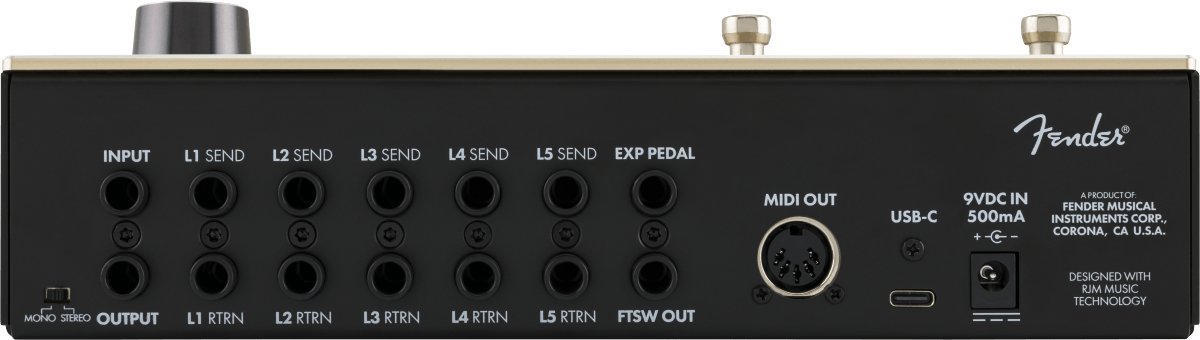

Electronics

• Input Impedance: 1 MΩ
• Output Impedance: 150Ω
• Power Consumption: 500ma
• Power Requirements: 9vdc Centre Negative AC adapter (Not Included)

Dimensions

• Dimensions: 3.80x5.70x13.40 IN
• Weight: 3.75 LB

‍
