The popular Deep "C" neck sports smooth rolled fingerboard edges, a "Super-Natural" satin finish and a newly sculpted neck heel for a supremely comfortable feel and easy access to the upper register. New V-Mod III Jazzmaster single-coil pickups are more articulate than ever while delivering the sparkle and chime the Jazzmaster is known for. The bridge pickup has a tap function that allows both a powerful, throaty sound or a lower-output vintage sound. At the flip of a switch, the rhythm circuit puts both pickups in series for a thicker tone with increased output, controlled by independent volume and tone roller pots. From classic Jazzmaster warble to Deep, Strat-style dives, the Panorama™ Tremolo system with pop-in arm puts the full range of expressive vibrato at your fingertips — while the ClassicGear™ J-Bridge keeps every note locked in with superior intonation, stability and tone.

The American Pro Jazzmaster delivers instant familiarity and sonic versatility you'll feel and hear right away, with broad ranging improvements that add up to nothing less than a new standard for professional instruments.

FEATURES

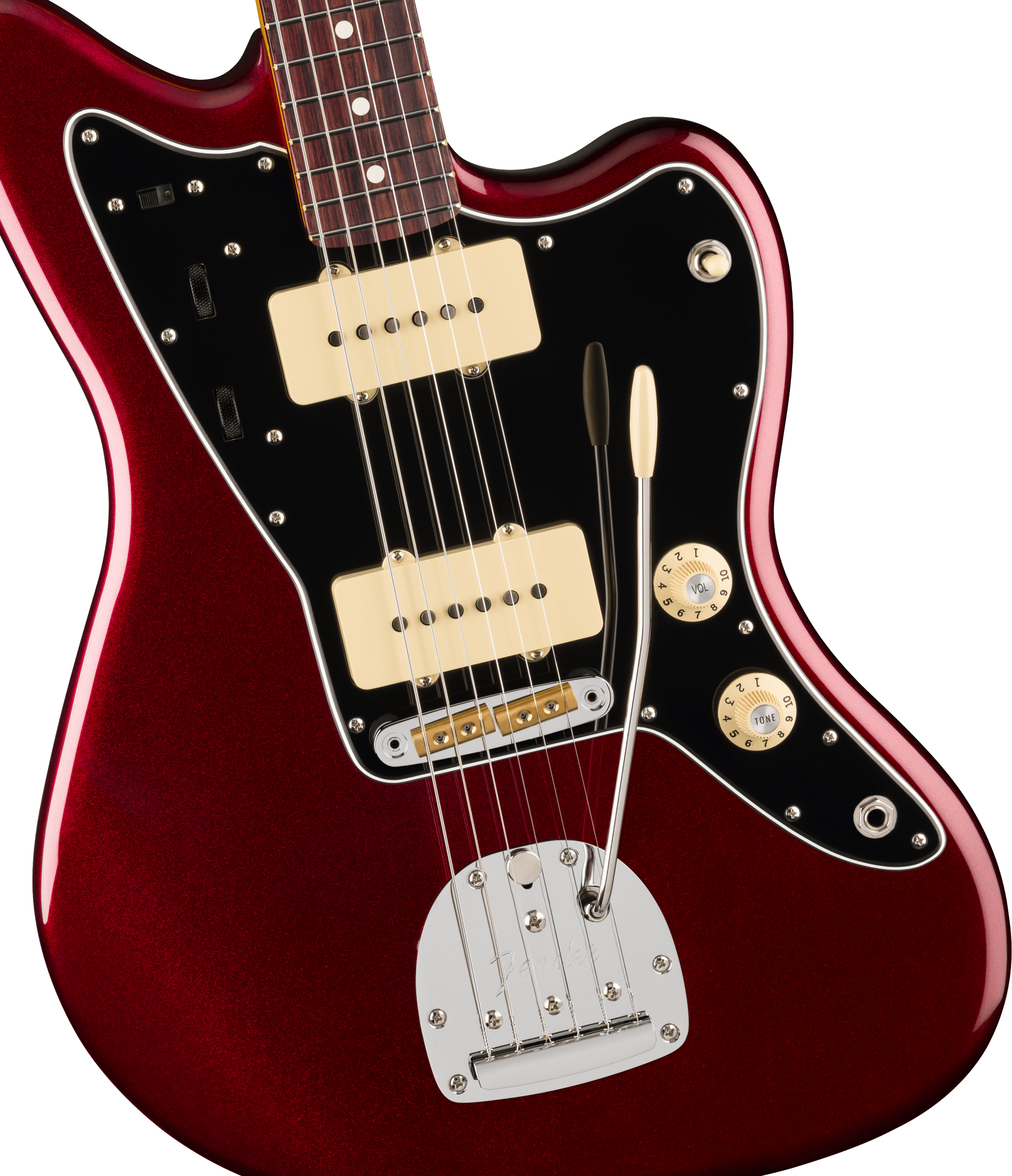

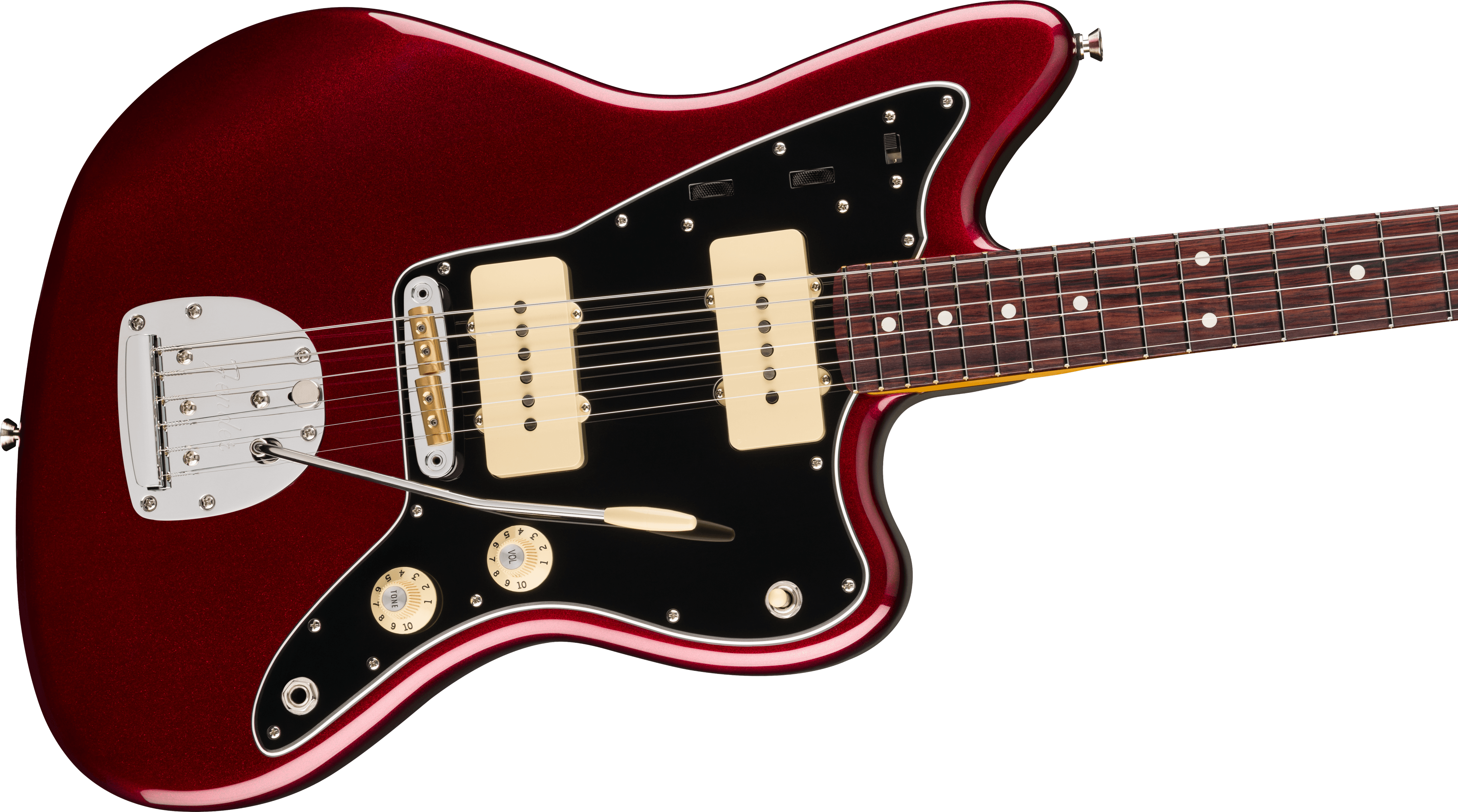

• Two V-Mod III single-coil Jazzmaster pickups
• Panorama® Jazzmaster tremolo with pop-in arm and ClassicGear™J-Bridge
• Deep "C"-shaped neck profile
• Bone nut; 22 narrow-tall frets for easier bending
• ClassicGear™ Precision™ Potentiometers
• Includes Deluxe Molded hardshell case

V-MOD III PICKUPS

V-Mod III Jazzmaster pickups are voiced specifically for each position, slightly overwound for punch and presence, yet retaining vintage warmth and clarity. Activated by a push/push switch, the bridge pickup can be tapped for a sparkly, vintage-accurate tone.

SCULPTED NECK HEEL

The rounded neck heel and beveled neck-plate improve access to the upper register and make leads easy and comfortable.

CLASSICGEAR™ J-BRIDGE & PANORAMA™ TREMOLO

The American Professional Jazzmaster features the ClassicGear™ J-Bridge with tight-tolerance machined saddles that lock each string’s break angle and contact point, maximizing vibrational coupling to the body while correcting the intonation and stability issues inherent in vintage-style offset bridges. The Panorama™ tremolo with pop-in arm dramatically increases the range of vibrato available, allowing for deep, Strat-style dives in addition to classic Jazzmaster warble.

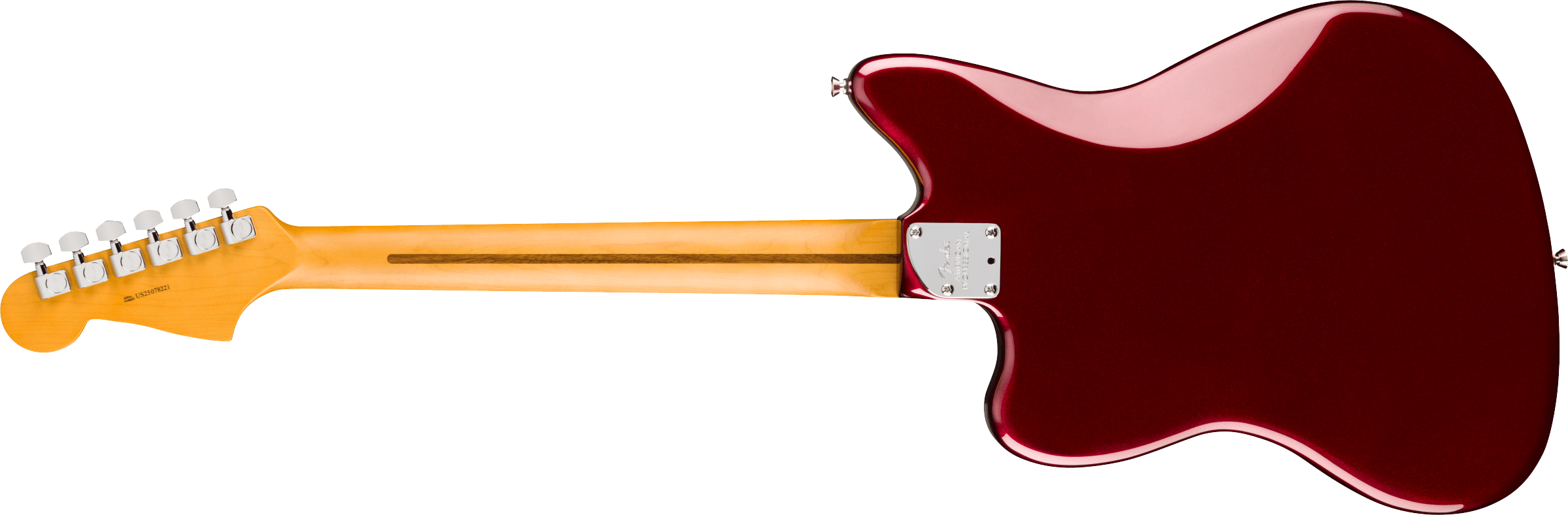

DEEP "C” NECK PROFILE WITH ROLLED FINGERBOARD EDGES

Delivering both comfort and speed, the American Professional “Deep C” neck profile is slim at the nut and fills out gradually as it approaches the neck joint to create a natural feel that’s perfect for chording and single note playing alike. The hand-rolled fingerboard edges and Super-Natural satin finish provide a supremely comfortable feel.

SERIES MODE RHYTHM CIRCUIT

At the flip of a switch, the rhythm circuit puts both pickups in series for a thicker tone with increased output, controlled by independent volume and tone roller pots.

NARROW-TALL FRETS

Narrow-tall frets deliver a vintage feel with modern playability, especially effective for bending notes and playing chords up the neck with perfect intonation.

‍

Neck

NECK MATERIAL : Maple

NECK FINISH : “Super-Natural” Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face

NECK SHAPE : Deep "C"

FINGERBOARD RADIUS : 9.5" (241 mm)

FINGERBOARD MATERIAL : Rosewood

POSITION INLAYS : White Dot

SIDE DOTS : White

NUMBER OF FRETS : 22

STRING NUT : Bone

NUT WIDTH : 1.685" (42.8 mm)

NUT MATERIAL : Bone

FRET SIZE : Narrow Tall

SCALE LENGTH : 25.5" (648 mm)

Body

BODY : Alder

BODY FINISH : Polyurethane

BODY SHAPE : Jazzmaster®

BODY STYLE : Solid Body

BODY MATERIAL : Alder

Hardware

BRIDGE : Panorama® Jazzmaster® Tremolo with Pop-In Arm and ClassicGear™ J-Bridge™

PICKGUARD : 3-Ply Black

PICKUP COVERS : Aged White

CONTROL KNOBS : Aged White "Witch Hat"

HARDWARE FINISH : Nickel/Chrome

TUNING MACHINES : Fender® Standard Cast/Sealed Staggered

STRINGS : Fender® USA 250L Nickel Plated Steel (.009-.042 Gauges), PN 0730250403

NECK PLATE : Bolt Asymmetrical with Micro-Tilt™ Adjustment

‍

Electronics

BRIDGE PICKUP : V-Mod III Single-Coil Jazzmaster®

NECK PICKUP : V-Mod III Single-Coil Jazzmaster®

PICKUP CONFIGURATION : SS

CONTROLS : Lead Circuit Controls (Slide Switch Down): Master Volume, Master Tone; Rhythm Circuit Controls (Slide Switch Up): Thumbwheel Volume and Tone Controls for Series Rhythm Mode

SWITCHING : 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

SPECIAL ELECTRONICS : Push/Push on Tone Control Taps Bridge Pickup for Vintage Tone

‍

‍
