Internally, it's meticulously voiced to capture the soul of one of our favorite classic American guitar amps—a '65 Deluxe—with all the harmonic complexity guitar players crave. Its all-analog circuitry provides a more immediate feel with rich low-end resonance, slightly scooped mids, and that crystalline top end chime that makes electric guitars sing.

SPECIFICATIONS

• Controls: Output level (it can get loud!)
• Dimensions: 3.625 x 1.875 x 1.5 in. (92 × 48 × 38 mm)
• Current Draw: 75 mA
• Input Impedance: 1 MΩ
• Output Impedance: 39 Ω
• Input: Mono TS 1/4"
• Output: Stereo TRS 1/4" (Tip is the left channel, Ring is the right channel)
• For use with headphones: Requires headphones with a 1/4" TRS plug.
• For use with a DAW: You can use either a mono TS cable into one channel of your interface or a stereo TRS cable with a splitter into two channels.

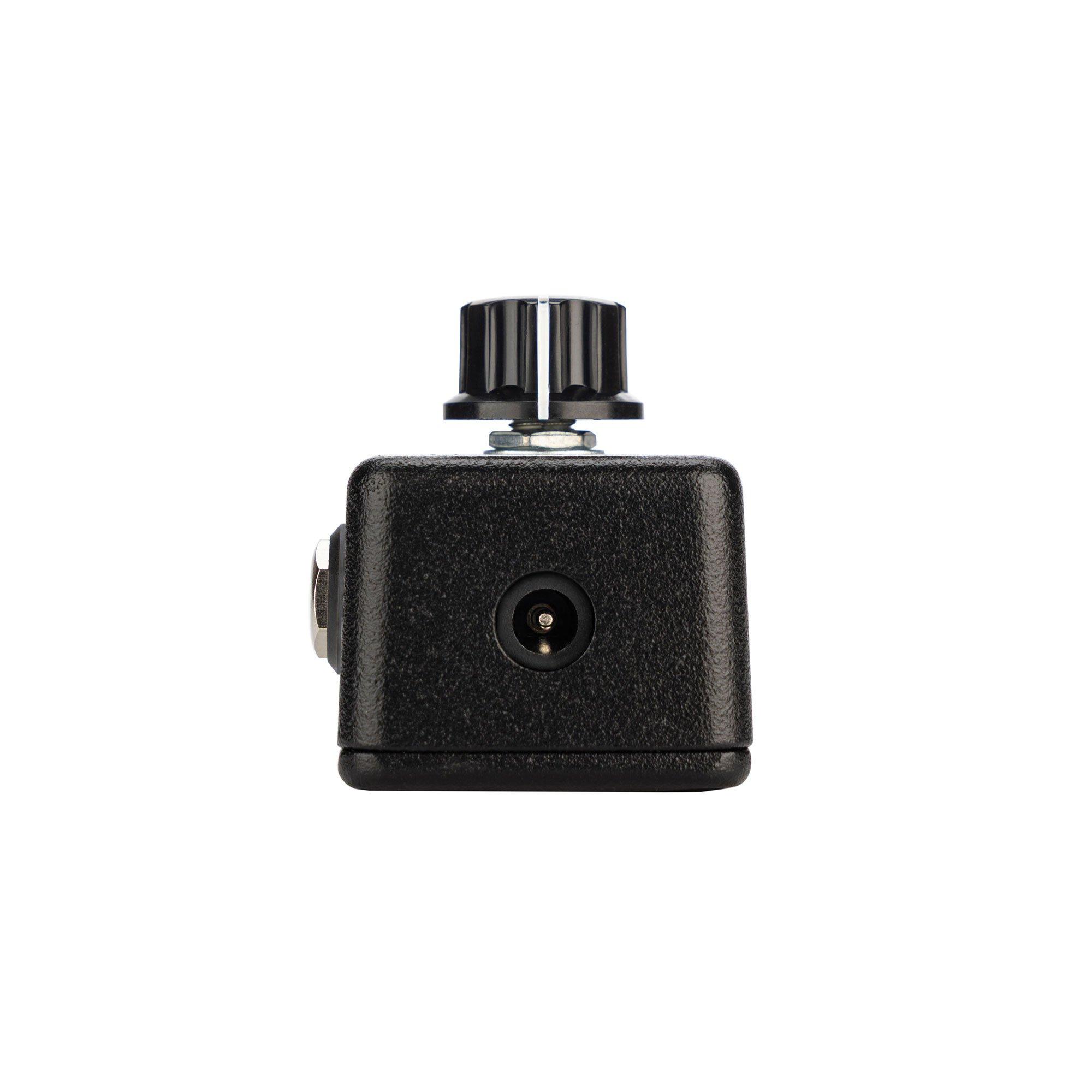

• Power: This device takes a standard 9V DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

‍
